• Output Power: 7452 W
• Output Voltage: 230 V DC
• Output Current: 34.5 A
• Input Voltage Range: 3-Phase 196–305 V AC (Delta) / 340–530 V AC (Wye), 47–63 Hz
• Efficiency: 95%
• Ripple & Noise: ≤ 2 Vp-p
• Inrush Current: max. 75 A @ 230 V AC / 50 A @ 400 V AC
• Operating Temperature: −30 °C to +70 °C

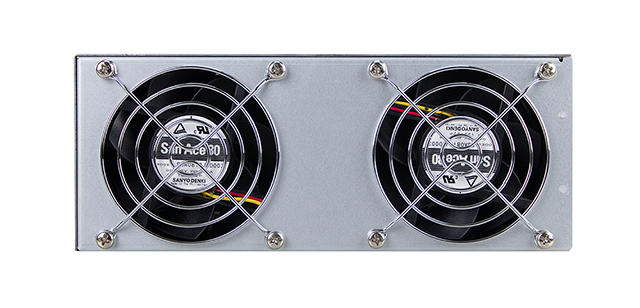

• Cooling: Forced Air Cooling with 2x 85 CFM Fans or Water Cooling (L-Type)
• Protections: Short circuit, Overload, Over voltage, Over temperature, Fan failure
• Isolation Voltage: 4300 V DC between input and output
• Dimensions (L x W x H): 460 mm x 211 mm x 83.5 mm (Air) / 460 mm x 216 mm x 83.5 mm (Water)
• Weight: approx. 10.9 kg (Air) / 10.1 kg (Water)
• Safety & EMC Certificates: UL62368-1, TUV EN62368-1, EAC, CB, CE
• LED Indicator: Green (OK) / Red (Fault)
• Manufacturer Warranty: 5 Years

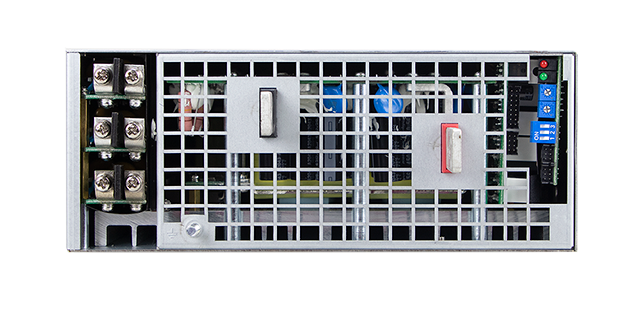

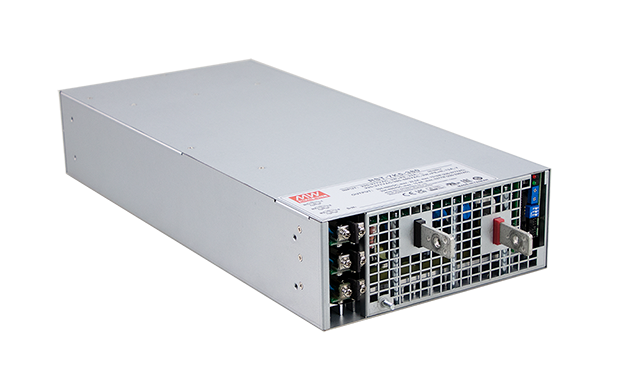

Information about the MEAN WELL RST-7K5-230

The MEAN WELL RST-7K5-230 represents the pinnacle of industrial power delivery with its extraordinary 7.5 kW capacity and rock-solid 230 V DC high-voltage output engineered specifically for the most demanding three-phase applications. Achieving an exceptional 95% efficiency rating while offering the strategic choice between dual 85 CFM forced air cooling and sophisticated water cooling, this power supply delivers unmatched thermal versatility. Engineered to conquer extreme environments with operation up to 70 °C ambient temperature, it establishes new reliability benchmarks through comprehensive protection against all common power disturbances.

The true brilliance of this engineering marvel lies in its cutting-edge programmability, enabling precise output voltage adjustment from 1 to 120% alongside constant current level control. Its revolutionary active current sharing technology allows up to four units to operate in parallel, delivering a staggering 30 kW combined output – perfect for mission-critical deployments. Enhanced by remote ON-OFF control, comprehensive alarm signaling, and backed by MEAN WELL's legendary 5-year warranty, the RST-7K5-230 stands as the ultimate solution for electrolysis systems, high-power laser applications, EV infrastructure, and next-generation factory automation.
