SHP-10K-380L

Quantity	Unit price
from 1	€2,727.20*
from 5	€2,598.00*
from 10	€2,483.10*
from 20	€2,411.40*

Prices excl. VAT plus shipping costs zzgl. Versandkosten

Available, delivery time: 1-3 days

Product number: 204221

Product information "SHP-10K-380L"

Technical Information & Details for the MEAN WELL SHP-10K-380L Power Supply

Output Power: 10,000 W (10 kW)
Output Voltage: 380 V DC
Output Current: 26.3 A
Input Voltage Range: 3-Phase 340 – 530 V AC (3-wire / Delta or 4-wire / Y)
Efficiency: up to 97%
Ripple & Noise: ≤ 3800 mVp-p
Power Factor: ≥ 0.98 @ 400 V AC / 480 V AC
Cooling: Water-cooled (L-Type)
Protection Functions: Short circuit, Overload, Over voltage, Over temperature
Communication Protocols: CANBus (standard), PMBus/MODBus-RTU/RS-485 (optional)
Isolation Voltage: 3,750 V AC
Dimensions (L x W x H): 460 mm x 216 mm x 83.5 mm (2U Profile)
Weight: approx. 10.15 kg
Safety & EMC Certificates: UL62368-1, TUV EN62368-1, EAC, CE, CB
Special Features: Programmable Voltage and Current, active current sharing
Manufacturer Warranty: 5 years

Information about the MEAN WELL SHP-10K-380L

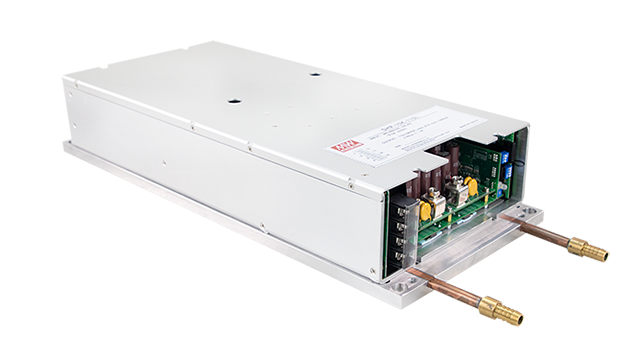

The MEAN WELL SHP-10K-380L stands as a pinnacle of high-voltage digital power engineering, delivering a massive 10 kW output within a space-saving 2U profile. Its most distinctive characteristic is the advanced L-type water-cooling system, which provides superior heat dissipation compared to traditional air-cooled units. This liquid-cooled design makes it an ideal choice for dust-sensitive or airtight environments where fan noise and maintenance must be minimized, ensuring that the power supply remains at peak efficiency even under continuous high-load operations in specialized laser or electrolysis applications.

Precision and scalability are the hallmarks of the SHP-10K-380L, featuring built-in digital communication protocols like CANBus for seamless integration into modern smart factory infrastructures. The unit offers exceptional flexibility with its user-programmable output voltage (50–120%) and current levels, catering perfectly to the specific needs of EV charging networks and energy storage systems. Furthermore, its active current sharing capability allows for the synchronization of up to four units to reach a staggering 40 kW total capacity, all backed by a robust 5-year manufacturer warranty to ensure long-term reliability for mission-critical industrial tasks.

Weiterführende Links zu "SHP-10K-380L"

Fragen zum Artikel?
Weitere Artikel von MEAN WELL

Verfügbare Downloads

Download Datenblatt SHP-10K-380L

Eigenschaften für "SHP-10K-380L"

Approval:	CB, CE, TÜV, UL
Efficiency:	96,5 %
Height:	84
Length:	460
Rated current:	26,3
Series:	SHP
Voltage:	380 VDC
Warranty:	5 years
Wattage:	10000 W
Weight:	11,9kg
Width:	116
