• Output Power: 720 W
• Output Voltage: 12 V DC
• Output Current: 60 A
• Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz
• Efficiency: up to 91 %
• Ripple & Noise: 150 mVp-p
• Inrush Current: 50 A cold start @ 230 VAC
• No-Load Power: low
• Operating Temperature: −20 °C to +60 °C
• Cooling: forced air cooling
• Protection Functions: Short circuit, Overload, Overvoltage, Over temperature
• Overvoltage Category: OVC II
• Isolation Voltage: 3 kV AC between input and output
• Dimensions (L x W x H): 295 x 127 x 41 mm
• Weight: approx. 1.93 kg
• Safety & EMC Certifications: UL62368-1, TUV, EAC, CB
• LED Indicators: AC OK, DC OK, Temp Alarm
• Manufacturer Warranty: 3 Years

Information on MEAN WELL RCP-1000-12

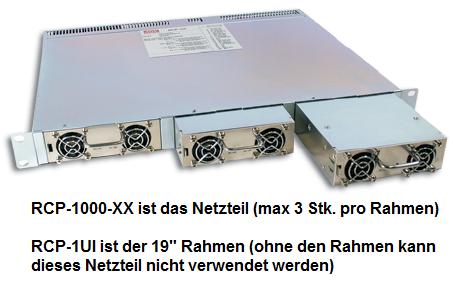

The MEAN WELL RCP-1000-12 is a high-performance 1000 W front-end power supply delivering an impressive stable 12 V DC output at 60 A, designed specifically for demanding industrial applications. It excels with its wide universal input voltage range of 90–264 V AC and high efficiency up to 91 %, enabling energy-efficient and reliable operation in data-intensive environments like server farms or high-end PLC systems. Advanced features such as Remote Sense for compensating voltage drops up to 0.5 V, parallel operation via Current Sharing, and comprehensive LED status indicators for AC/DC OK plus temperature alarm provide maximum flexibility and monitoring capabilities.

The rugged construction with protection against overload, short circuit, overvoltage, and overtemperature, along with an MTBF exceeding 840,000 hours, ensures long-term reliability even under extreme conditions from -20 °C to +60 °C. Complemented by auxiliary 5 V / 0.3 A power supply, Remote ON/OFF control, and I²C interface for intelligent monitoring, the RCP-1000-12 stands out with its high power density and scalable rack integration, ideal for redundant systems in automation, telecommunications, and critical infrastructure.
