SP-480-12 Auslaufmodell

Technical Information & Details for the MEAN WELL PSP-600-24 Power Supply Output Power: 600 W Output Voltage: 24 V DC Output Current: 25 A Input Voltage Range: 88 – 264 V AC / 124 – 370 V DC, 47 – 63 Hz Efficiency: 87% Ripple & Noise: ≤ 240 mVp-p Inrush Current: 20 A @115 VAC / 40 A @230 VAC Operating Temperature: −20 °C to +60 °C Cooling: Forced air cooling by built-in DC fan Protection Functions: Short circuit, Overload, Over voltage, Over temperature Isolation Voltage: 3000 V AC I/P-O/P Dimensions (L x W x H): 170 mm x 120 mm x 93 mm Weight: 1.9 kg Safety & EMC Certificates: UL62368-1, TUV EN62368-1, CB, EAC, CE Special Features: Active PFC function, Current sharing up to 2400W, Remote ON-OFF, DC OK Signal Manufacturer Warranty: 3 Years Information about the MEAN WELL PSP-600-24 The MEAN WELL PSP-600-24 is a robust and highly capable 600W industrial power supply engineered for high-reliability systems. Its most distinctive characteristic is the built-in current sharing function, which allows for parallel operation of up to four units (3+1 configuration) to support massive power requirements up to 2400W. Equipped with a high-performance active PFC circuit, this unit ensures an optimized power factor and high efficiency of 87%, making it suitable for modern energy-conscious industrial environments and telecommunications infrastructures. Beyond its raw power delivery, the PSP-600-24 includes a suite of advanced control features designed for seamless integration into complex setups, such as remote sensing to maintain precise voltage at the load and remote ON/OFF control. The unit is protected by an extensive array of safety mechanisms including constant current limiting and thermal shutdown, while the built-in DC fan provides consistent forced air cooling for stable performance at high altitudes up to 3000 meters. With its DC OK signal output and global safety certifications, this power supply represents a versatile and secure solution for mission-critical hardware and large-scale automation projects.

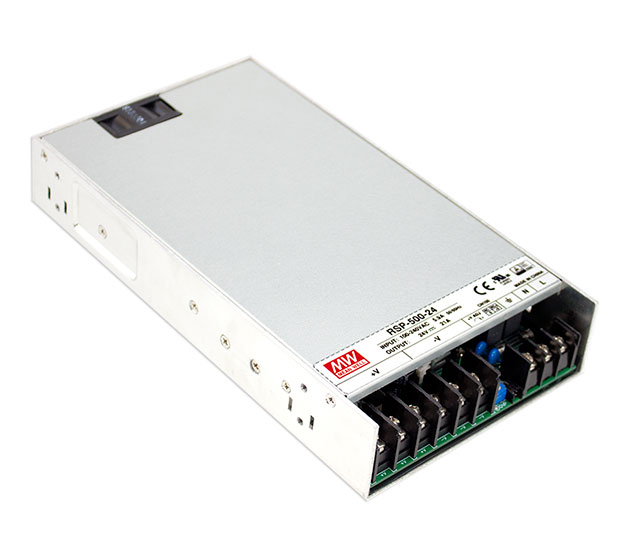

500W Einzelausgang mit PFC-Funktion 500W Single Output with PFC Function
