• Output Power: 752.4 W
• Output Voltage: 36 V DC
• Output Current: 20.9 A
• Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz
• Efficiency: 95 %
• Ripple & Noise: 250 mVp-p
• Inrush Current: 20 A @115 VAC / 40 A @230 VAC
• Leakage Current: < 0.75 mA / 240 VAC
• Operating Temperature: −30 °C to +70 °C
• Cooling: Fanless conduction and convection cooling
• Protection Functions: Short circuit, Overload, Over voltage, Over temperature
• Operating Altitude: Up to 5000 meters
• Isolation Voltage: 3.75 KVAC between Input and Output
• Dimensions (L x W x H): 237 mm x 100 mm x 41 mm
• Weight: approx. 1.4 kg
• Safety & EMC Certificates: UL62368-1, TUV EN62368-1, IS13252, EAC, CB, CE
• LED Indicator: Power On Indicator
• Manufacturer Warranty: 3 Years

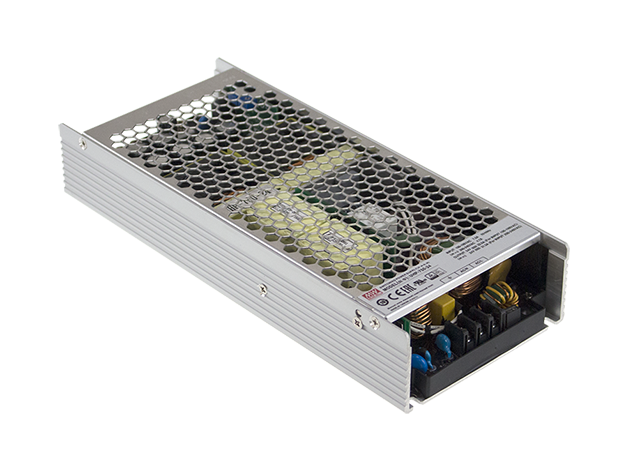

Information about the MEAN WELL UHP-750-36

The MEAN WELL UHP-750-36 is a high-performance 750W slim-type switching power supply, specifically engineered to meet the rigorous demands of modern industrial environments. Its ultra-low profile of 41mm makes it an exceptional choice for space-constrained installations, allowing for higher density within control cabinets. A standout feature of this series is its fanless, conduction-cooled design, which not only eliminates the noise and maintenance associated with mechanical fans but also significantly enhances system reliability in dusty or harsh conditions. The unit is built to be resilient, capable of withstanding 300VAC surge inputs for up to 5 seconds, ensuring the safety of connected equipment during grid instability.

Designed for versatility and durability, the UHP-750-36 delivers a staggering 95% efficiency, minimizing energy waste and heat generation. It operates reliably across a broad temperature spectrum from -30°C to +70°C and is rated for high-altitude performance up to 5000 meters. The integration of built-in active PFC functions and a DC OK relay contact provides sophisticated power management and status monitoring capabilities for industrial automation, telecom, and mechanical equipment. With 5G anti-vibration strength and compliance with the latest international safety standards like UL62368-1, this power supply offers a robust and future-proof solution for mission-critical applications worldwide.
