Technical Information & Details for MEAN WELL RSP-1500-15 Power Supply
- Output Power: 1500 W
- Output Voltage: 15 V DC (adjustable from 13.5 to 16.5 V via potentiometer)
- Rated Current: 100 A (Current range 0 – 100 A)
- Output Voltage Programming (PV): Voltage adjustment allowable to 70 – 100% of nominal output voltage via external resistance
- Ripple & Noise (max.): ≤ 150 mVp-p
- Voltage Tolerance: ±1.0%
- Input Voltage Range: 90 – 264 V AC / 250 – 370 V DC
- Efficiency (Typ.): 87%
- Power Factor (PF): PF ≥ 0.95 at 230 V AC (at full load)
- Auxiliary Power: 12 V @ 0.1 A (for Remote ON-OFF control)
- Parallel Operation (Current Sharing): Active current sharing up to 4 units (up to 6000 W total power, 3+1 redundancy)
- Operating Temperature: −20 °C to +70 °C (refer to output derating curve)
- Cooling: Forced air cooling by built-in DC fan
- Protections: Short circuit, Overload (constant current limiting, shut down O/P voltage after 5 sec), Over voltage (17 – 20.5 V), Over temperature
- Form Factor / Housing: 2U enclosed metal case
- Dimensions (L x W x H): 278 mm x 127 mm x 83.5 mm
- Weight: Approx. 3.0 kg
- Manufacturer Warranty: 5 Years
Information about MEAN WELL RSP-1500-15

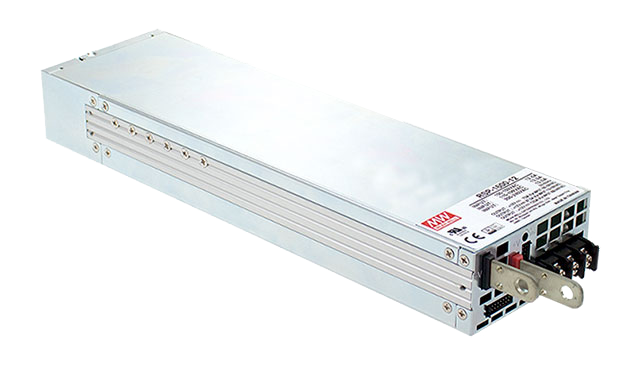

The MEAN WELL RSP-1500-15 is a high-performance 1500W enclosed single-output AC/DC power supply featuring a 2U profile. Operating across a universal input voltage range of 90 to 264 V AC, it provides a stable 15 V DC output at up to 100 A. In addition to manual voltage adjustment via a built-in potentiometer, the unit features programmable output voltage (PV: 70–100%) using an external resistor.
Designed for demanding industrial setups, the RSP-1500-15 incorporates active current sharing for up to 4 units in parallel (delivering up to 6000 W total), along with remote ON-OFF control, remote sensing, auxiliary power, and a Power OK alarm signal. Cooled by a built-in thermostatically controlled fan, it operates reliably across working temperatures from −20 °C to +70 °C. This renders it ideal for factory automation, test and measurement instruments, laser machines, broadcasting, and RF applications.
