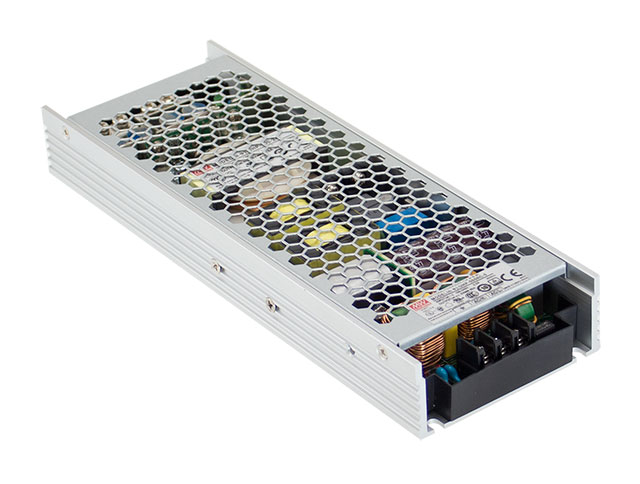

Technical Information & Details for the MEAN WELL UHP-500-48 Power Supply
- Output Power: 504 W
- Output Voltage: 48 V DC
- Output Current: 10.5 A
- Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz
- Efficiency: up to 95 %
- Ripple & Noise: ≤ 360 mVp-p
- Inrush Current: max. 30 A @115 VAC / 60 A @230 VAC
- Cooling Type: Fanless convection
- Operating Temperature: −30 °C to +70 °C
- Vibration Resistance: 5G anti-vibration capability
- Protection Functions: Short circuit, Overload, Over voltage, Over temperature
- Isolation Voltage: 3.75 kV AC I/P-O/P high isolation
- Dimensions (L x W x H): 232 mm x 81 mm x 31 mm
- Weight: approx. 905 g
- Safety & EMC Approvals: UL 62368-1, TUV BS EN/EN62368-1, CB, CE, UKCA
- LED Indicator: Power On Status LED
- Warranty: 3-year manufacturer warranty
Information about the MEAN WELL UHP-500-48
Providing a reliable 48-volt power output within a compact 31mm profile, this silent industrial power supply is ideally suited for restricted-space automation and communication setups. Its fanless convection design eliminates mechanical wear while ensuring exceptional conversion efficiency across broad thermal thresholds. Featuring heavy-duty 5G vibration resistance, active power factor correction, and rigorous safety compliance, it guarantees maximum operational uptime for critical deployments.
