Technical Information & Details for the MEAN WELL UHP-500-15 Power Supply
- Output Power: 501.6 W
- Output Voltage: 15 V DC
- Output Current: 33.4 A
- Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz
- Efficiency: up to 94 %
- Ripple & Noise: ≤ 200 mVp-p
- Inrush Current: max. 30 A @115 VAC / 60 A @230 VAC
- Cooling Type: Fanless convection
- Operating Temperature: −30 °C to +70 °C
- Vibration Resistance: 5G anti-vibration capability
- Protection Functions: Short circuit, Overload, Over voltage, Over temperature
- Isolation Voltage: 3.75 kV AC I/P-O/P high isolation
- Dimensions (L x W x H): 232 mm x 81 mm x 31 mm
- Weight: approx. 905 g
- Safety & EMC Approvals: UL 62368-1, TUV BS EN/EN62368-1, CB, CE, UKCA
- LED Indicator: Power On Status LED
- Warranty: 3-year manufacturer warranty

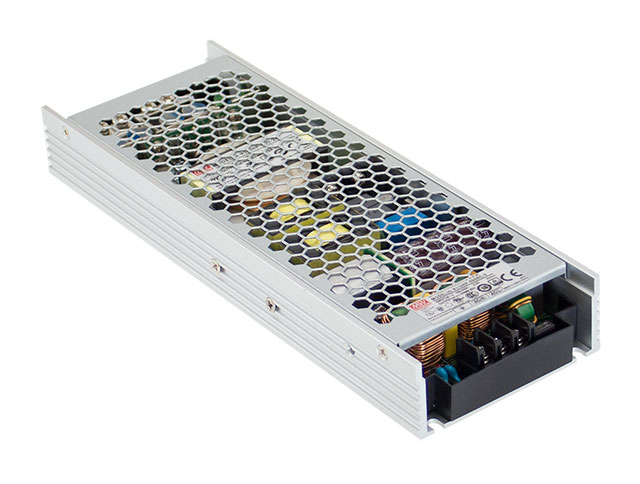

Information about the MEAN WELL UHP-500-15
Built to satisfy rigorous specifications for continuous 15-volt power delivery, this low-profile unit integrates seamlessly into space-critical machinery housings. It features a fanless thermal design that eliminates acoustic noise while maintaining high operational efficiency across wide temperature extremes. Enhanced mechanical stability against heavy shocks, integrated active PFC, and robust electronic safeguarding make it a dependable asset for industrial control frameworks and specialized electronic apparatus.
