Technical Information & Details for the MEAN WELL UHP-350-15 Power Supply
- Output Power: 351 W
- Output Voltage: 15 V DC
- Output Current: 23.4 A
- Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz
- Efficiency: 92%
- Ripple & Noise: ≤ 200 mVp-p
- Inrush Current: max. 30 A @115 VAC / 60 A @230 VAC
- No-Load Power Consumption: < 0.75 W
- Operating Temperature: −30 °C to +70 °C
- Cooling: Fanless natural convection
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Overvoltage Category: OVC III
- Isolation Voltage: 3750 V AC input to output
- Dimensions (H x W x D): 220 mm x 62 mm x 31 mm
- Weight: approx. 680 g
- Safety & EMC Certificates: UL 62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, EAC, CB, CE
- LED Indicator: Power On Indicator
- Manufacturer Warranty: 3 years

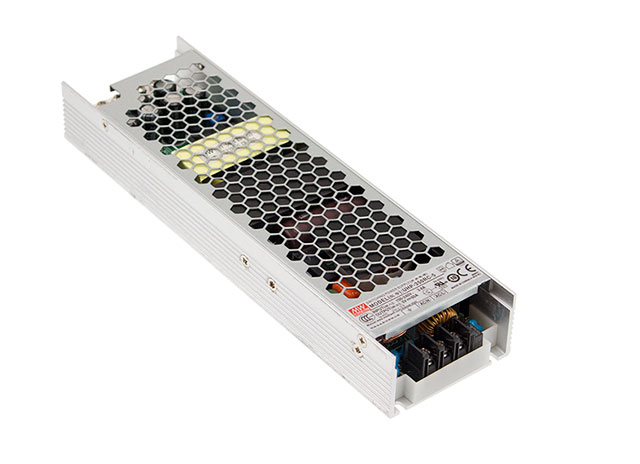

Information about the MEAN WELL UHP-350-15
Built to optimize installation depth in modern machinery, this 15V single-output power module operates at up to 92% efficiency in a ultra-low 31 mm profile. Its fan-free design eliminates noise and maintenance demands while maintaining maximum mechanical structural integrity with a 5G anti-vibration capability. Engineered to perform under challenging conditions, it smoothly runs across a broad operating temperature range from -30 °C to +70 °C. Built-in transient protection ensures immunity to a 300 VAC surge input for 5 seconds, making it a robust power source certified under safety benchmarks like UL 62368-1 and BS EN/EN60335-1.
