• Output Power: 60 W
• Output Voltage: 5 V DC
• Output Current: 12 A
• Input Voltage Range: 9 – 36 V DC (4:1 Wide Input)
• Efficiency: 88%
• Ripple & Noise: ≤ 60 mVp-p
• Inrush Current: max. 20 A @ 24 VDC
• Isolation Voltage: 4000 V DC (Reinforced Isolation)
• Operating Temperature: −40 °C to +70 °C
• Cooling: Fanless natural convection
• Protections: Short circuit, Overload, Over voltage, Input reverse polarity
• Unique Feature: Semi-potted for vibration resistance (5G)
• Dimensions (L x W x H): 127 mm x 60 mm x 25 mm
• Weight: approx. 310 g
• Safety & EMC Certificates: EN50155, EN45545-2 (Railway), UL 62368-1, CE, EAC
• LED Indicator: Power On Indicator
• Manufacturer Warranty: 3 Years

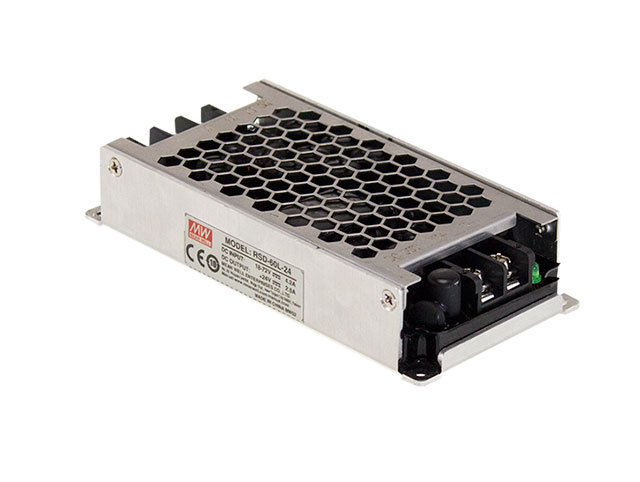

Information about the MEAN WELL RSD-60G-5

The MEAN WELL RSD-60G-5 is a high-performance 60W DC-DC converter engineered to withstand the rigorous conditions of railway and industrial transportation systems. It fully complies with EN50155 and EN45545-2 standards, ensuring maximum safety, fire resistance, and operational stability in rolling stock applications. One of its standout characteristics is the versatile 4:1 wide input range of 9V to 36V, which provides a consistent 5V output even during significant input voltage fluctuations. The ultra-compact 1U low profile design with a height of only 25mm makes it the ideal choice for integration into space-constrained telecommunication and network equipment.

Durability is a core strength of this unit, featuring a semi-potted encapsulation that safeguards the internal electronics from dust, moisture, and mechanical vibrations up to 5G. With its reinforced 4000V DC I/O isolation, it offers superior electrical separation and protection for critical downstream devices. The fanless design relies on natural air convection, enabling silent and maintenance-free operation across a wide temperature spectrum from -40 °C to +70 °C. Enhanced with safety features like MOSFET-based input reverse polarity protection and constant current limiting, the RSD-60G-5 stands as a dependable and robust power solution for demanding modern infrastructure projects.
