PDR-480-150/HPV04801.150T

Camtec
PDR-480-150/HPV04801.150T
This product is currently not available.
Quantity Unit price
From 1 €347.73 *
From 5 €336.31 *
From 10 €331.12 *
From 20 €325.93 *

Prices plus VAT plus shipping costs

Delivery time Auf Anfrage Workdays

  • Order number: 14566
Datenblatt zu PDR-480-150/HPV04801.150T
Description Properties
Description
  Der Artikel ist nicht mehr Lieferbar! Bei Fragen rufen Sie uns an.  ... more
Close menu
Product information "PDR-480-150/HPV04801.150T"



Der Artikel ist nicht mehr Lieferbar! Bei Fragen rufen Sie uns an.

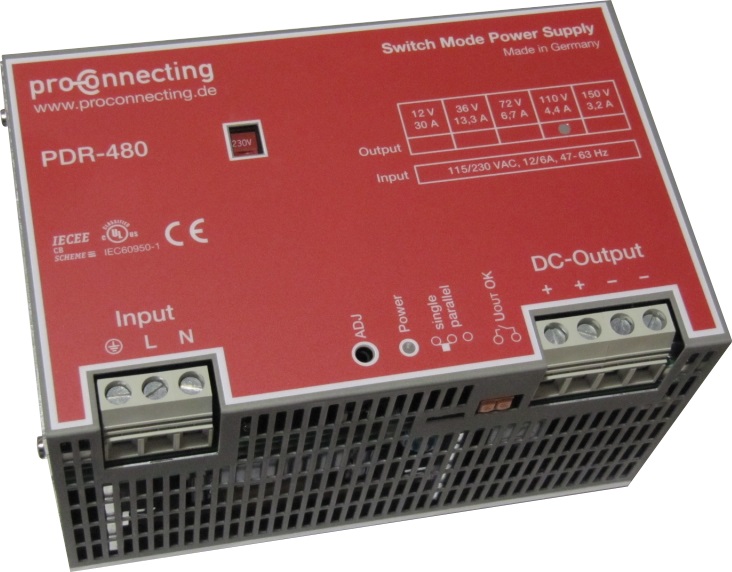

PDR-480-150/HPV04801.150T

Modell PDR-240/HPV04801
Ausgangsleistung dauerhaft 480W
Eingangsnennspannung 115/230Vac
Eingangsbereich AC 90..132Vac/184..265Vac
Eingangsbereich DC 250... 375Vdc
Eingangsfreqenz 47... 63Hz
Netzausfallüberbrückung 50ms
Einschaltstrombegrenzung  NTC <40A
Startautomatik Softstart / Sanftanlauf
Ausgangsspannung DC 72V 110V 150V 240V
Einstellbereich 58... 86V 86... 132V 132... 180V 180... 240V
Restwelligkeit mVss 150mV 200mV 200mV 300mV
Ausgangsnennstrom 6,7A 4,4A 3,2A 2,2A
Powerboost <=60°C/60s 8A 5,3A 3,8A 2,7A
Stabilität Laständerung typ. ±0,5%
Ausregelzeit typ.  <1ms
Wirkungsgrad typ. 0,93
Grundlast leerlaufsicher
Kurzschluss kurzschlussfest
Umgebungstemperatur Betrieb -20°C... +70°C
Kühlung Natürliche Konvektion
Temperaturkontrolle ja
Abmessungen (BxHxT) 200x130x118mm
Bauart IP20
Sicherheitsnorm der Bauart CSA UL CE according to IEC60950-1
Sicherheit IEC EN60950-1 EN50178 EN60204-1
Sicherheitsklasse 1(A) VDE0100 VDE0805
Ein- /Ausgangsisolation 3000Vac
Klimaklasse, Luftfeuchte 3k3, 90% nicht kondensierend
EMI EN55022 Klasse B
EMS EN61000-6-2,3
MTBF nach IEC61709 400000h
MTTF nach IEC60050 128124h
Power Good Relais optional, galvanisch getrennt 500Vdc
Bestelloptionen PG (Power Good) Relais galvan. getrennt
Zubehör siehe Datenblatt
Related links to "PDR-480-150/HPV04801.150T"
Available downloads:
Properties
Hier können Sie alle Eigenschaften sehen more
Eigenschaften für "PDR-480-150/HPV04801.150T"
Voltage: 150 VDC
Power: 480 Watt
Phases: One-Phase
Rated current: 3,2 A
Efficiency: 93 %
Design: Switch cabinet
Warranty: Three years
Safety approvals: CE, UL
Length: 130 mm
Width: 114,5 mm
Height: 200 mm
Weight: 2,8kg
