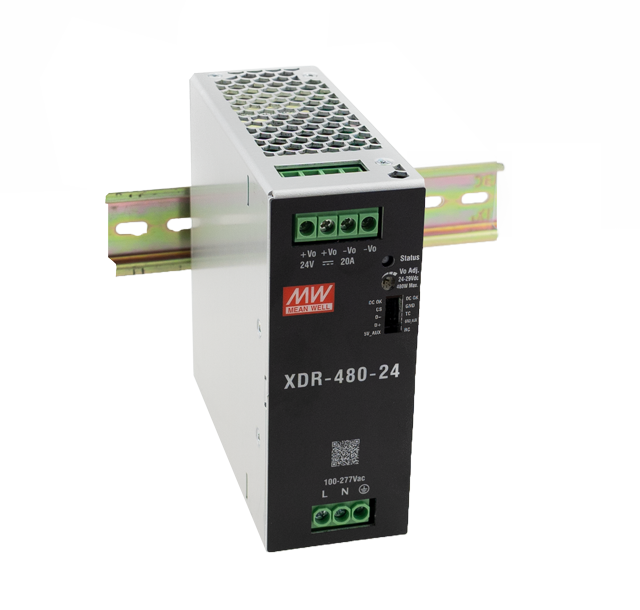

XDR-480-48

Technical Information & Details for MEAN WELL XDR-480E-24 Power Supply Output power: 480 W Output voltage: 24 V DC Output current: 20 A Input voltage range: 85 – 264 V AC / 120 – 370 V DC, 47 – 63 Hz Efficiency: up to 96 % Ripple & noise: ≤ 150 mVp-p Inrush current: max. 30 A @230 VAC No-load power consumption: < 1.2 W Operating temperature: −40 °C to +70 °C (derating above +50 °C) Cooling: fanless natural convection Protections: short circuit, overload, overvoltage, overtemperature Overvoltage category: OVC III Isolation voltage: 4000 V AC between input and output Dimensions (H x W x D): 125.2 mm x 48 mm x 125 mm Weight: approx. 890 g Safety & EMC certifications: CE, UL, CCC, EAC, UKCA, EN 55032 Class B, IEC/EN 61010-1, EN 62368-1 DC-OK signal: relay contact (30 V/1 A DC, 30 V/0.5 A AC) Manufacturer warranty: 3 years About the MEAN WELL XDR-480E-24 The MEAN WELL XDR-480E series provides high-power 480 W DIN-rail power supplies in an ultra-slim 48 mm housing for space-critical industrial installations. The XDR-480E-24 delivers stable 24 V DC / 20 A with droop-mode paralleling up to 1920 W (4 units), constant current operation, and DC-OK relay for precise load monitoring, meets OVC III standards for altitudes up to 5000 m, and features advanced hiccup protection with automatic recovery. With 96% efficiency and fanless convection cooling, it's ideal for manufacturing lines, robotics, and distributed power systems requiring high uptime.

Technical Information & Details for MEAN WELL XDR-240E-24 Power Supply Output power: 240 W Output voltage: 24 V DC Output current: 10 A Input voltage range: 85 – 264 V AC / 120 – 370 V DC, 47 – 63 Hz Efficiency: up to 94% Ripple & Noise: ≤ 150 mVp-p Inrush current: max. 45 A @230 VAC No-load power consumption: < 1.2 W Operating temperature: −40 °C to +70 °C (derating above +50 °C) Cooling: fanless natural convection Protection functions: Short circuit, overload, overvoltage, overtemperature Overvoltage category: OVC III Isolation voltage: 4000 V AC between input and output Dimensions (H x W x D): 125.2 mm x 40 mm x 116 mm Weight: approx. 612 g Safety & EMC certifications: CE, UL, CCC, EAC, UKCA, EN 55032 Class B, IEC/EN 61010-1, EN 62368-1 DC-OK signal: Relay contact (30V/1A DC, 30V/0.5A AC max) Manufacturer warranty: 3 years Information about MEAN WELL XDR-240E-24 The MEAN WELL XDR-240E series provides economical 240 W DIN-rail power supplies in slim 40 mm housing for industrial control cabinets with limited space, featuring universal AC/DC input and up to 94% efficiency for reduced energy consumption. The XDR-240E-24 delivers stable 24 V / 10 A output (adjustable 24-28 V) with DC-OK relay for status monitoring, OVC III compliance for harsh industrial sites up to 5000 m altitude, and complete protection suite. Fanless design ensures quiet, reliable operation across -40 to +70 °C, ideal for automation, PLC systems, and heavy machinery.
