• Output Power: 10 W
• Output Voltage: 15 V DC
• Output Current: 0.67 A
• Input Voltage Range: 85 – 264 V AC / 120 – 370 V DC, 47 – 63 Hz
• Efficiency: 81 %
• Ripple & Noise: ≤ 120 mVp-p
• Inrush Current: max. 35 A @115 VAC / 70 A @230 VAC
• No-load Power Consumption: < 0.75 W
• Operating Temperature: −20 °C to +70 °C
• Cooling: Free air convection
• Protections: Short circuit, Overload, Over voltage
• Isolation Voltage: 3000 V AC I/P to O/P
• Dimensions (W x H x D): 22.5 mm x 90 mm x 100 mm
• Weight: approx. 150 g
• Safety & EMC Certificates: UL508, TUV EN62368-1, EAC, CB, BSMI, CE
• LED Indicator: Power On indicator
• Manufacturer Warranty: 3 Years

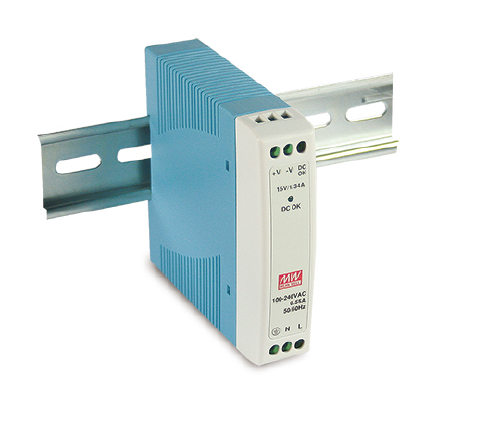

Information on the MEAN WELL MDR-10-15

The MEAN WELL MDR-10-15 stands out as a reliable and compact 10W industrial power supply, engineered for seamless integration into space-constrained control cabinets. Its ultra-slim 22.5mm profile ensures efficient use of DIN rail real estate on TS-35/7.5 or 15 rails. A key functional advantage is the built-in DC OK active signal, providing an essential diagnostic interface for remote monitoring of the 15V output status. Efficiency is a primary focus, highlighted by a low no-load power consumption of less than 0.75W, which aligns with modern energy-saving standards. The unit operates with silent, fanless cooling via free air convection, significantly extending the service life by eliminating moving parts. Built to withstand demanding environments, it features comprehensive protection circuitry against short circuits and over-voltage, utilizing a hiccup mode for automatic recovery after fault conditions are cleared. With its universal AC input range and rigorous 100% full load burn-in testing, the MDR-10-15 is a premium choice for powering specialized 15V industrial sensors, communication modules, and laboratory equipment.
