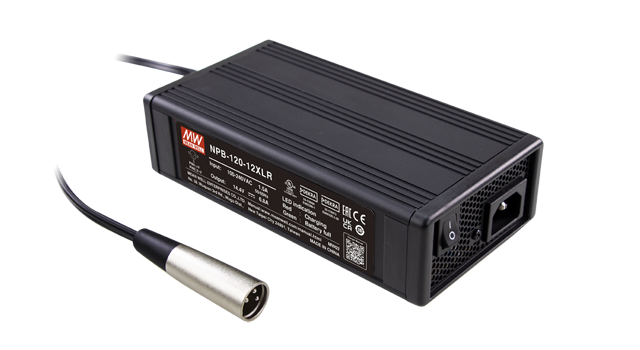

Technical Information & Details for MEAN WELL NPB-120-12XLR Charger Output Power: 103.4 W Output Voltage (Default): 14.4V (Boost) / 13.8V (Float) Voltage Adjustable Range (VR): 10.5V – 15.2V DC Output Current: 6.8 A (adjustable 3.4 – 6.8 A) Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: 90.5% Power Factor (PFC): PF > 0.98 / 115 VAC, PF > 0.92 / 230 VAC No Load Power Consumption: < 0.15 W (with AC switch off) Operating Temperature: −30°C to +70°C Cooling: Fanless design via free air convection Protection Functions: Short circuit, Over voltage, Over temperature, Battery reverse polarity Charger Type: Selectable 2 or 3 stage via DIP S.W Output Connector: 3-pin XLR connector Dimensions (L x W x H): 182.7 mm x 96 mm x 49 mm Weight: 1.3 kg Safety & EMC Certificates: CB, DEKRA, UL, EAC, CE, UKCA (EN62368-1/EN60335-1/2-29) LED Indicator: Status LED for charging (Red: Charging / Green: Full) Manufacturer Warranty: 3 Years Information about the MEAN WELL NPB-120-12XLR The MEAN WELL NPB-120-12XLR is a high-end 120W charging unit engineered for universal compatibility with both lead-acid and lithium-ion battery technologies. Featuring a professional 3-pin XLR output plug, it provides a secure and standardized connection for portable electric vehicles, medical devices, and high-performance power tools. A standout characteristic is its fanless mechanical architecture, which ensures silent operation and eliminates maintenance issues related to moving parts, making it ideal for quiet environments like homes or offices. The device offers exceptional control through its selectable 2-stage or 3-stage charging curves, easily toggled via an on-board DIP switch to satisfy the charging requirements of LiFePO4, AGM, or Gel batteries. Furthermore, the unit includes high-precision potentiometers for customized adjustments of charging voltage and current (50-100% range), allowing for perfect battery health management. With built-in battery reverse polarity protection and dual safety compliance (UL/EN62368-1 and EN60335-1/2-29), the NPB-120-12XLR is a safe, durable, and highly efficient solution for diverse energy storage needs.

Technical Information & Details for MEAN WELL NPB-240-12AD1 Battery Charger Maximum Power: 194.4 W (Continuous) Boost Charge Voltage (Vboost): 14.4 V DC (Default) Float Charge Voltage (Vfloat): 13.8 V DC (Default) Voltage Adjustment Range: 10.5 – 15.2 V DC (via Vo Adj. potentiometer) Rated Output Current: 13.5 A Current Adjustment Range: 6.75 – 13.5 A (50% to 100% via Io Adj. potentiometer) Recommended Battery Capacity: 30 – 100 Ah Efficiency: 92% Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC Frequency Range: 47 – 63 Hz Power Factor (PFC): PF > 0.98 / 115 V AC, PF > 0.95 / 230 V AC (at full load) No-Load Power Consumption: < 0.15 W (when AC switch is off) Output Connector: Anderson Equivalent Connector (AD1 Type, 1327 / 1327G6 housing, 45A contacts) with 1m cable Operating Temperature: −30 °C to +70 °C (Refer to derating curve) Cooling: Fanless design (Free air convection) Charging Curve: 2 or 3 stage selectable via DIP switch Compatible Battery Types: Lead-Acid (Flooded, Gel, AGM) & Li-ion (Lithium iron, Lithium manganese) Protections: Short circuit, over voltage, over temperature, battery reverse polarity (internal fuse) Safety & EMC Standards: CB IEC62368-1, IEC60335-1/2-29, UL62368-1, Dekra EN62368-1, EN60335-1/2-29, CE, UKCA, EAC, BSMI, R33100 Dimensions (L x W x H): 182.7 mm x 96 mm x 49 mm Weight: 1.3 kg Manufacturer Warranty: 3 Years Information about the MEAN WELL NPB-240-12AD1 The MEAN WELL NPB-240-12AD1 is a highly versatile, fanless 240W compact battery charger designed for charging lead-acid (Flooded, Gel, AGM) and lithium-ion (LiFePO4, lithium manganese) batteries. Delivering a rated charging current of 13.5A at a nominal 12V DC system voltage, this model comes equipped with an integrated 100cm cable terminated with an Anderson Equivalent connector (AD1). It supports a universal AC input range of 90 to 264V AC with active PFC, achieving high energy efficiency up to 92%. Featuring a complete fanless convection-cooled construction, the NPB-240-12AD1 operates in complete silence with zero mechanical wear. User-configurable controls on the front panel allow precise adjustments of both the charging voltage (10.5 to 15.2V DC) and charging current (50% to 100%) via built-in potentiometers. Additionally, an integrated DIP switch enables effortless selection between a 2-stage charging profile (ideal for Li-ion chemistries) and a 3-stage profile (ideal for lead-acid batteries). Outfitted with comprehensive safety features including short circuit, overvoltage, overtemperature, and battery reverse polarity protection, it provides reliable power management for mobile and industrial applications.

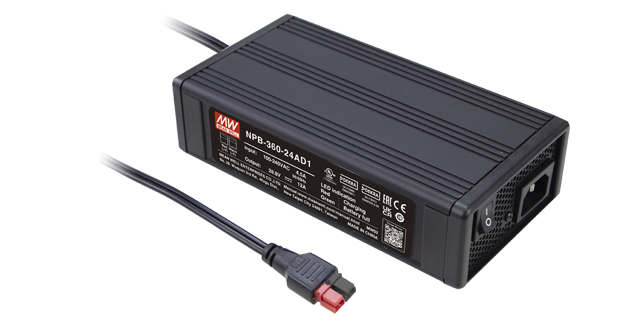

Technical Information & Details for MEAN WELL NPB-360-24AD1 Battery Charger Product Type: Compact Size & Wide Output Range Battery Charger Output Connector Type: Anderson Equivalent Connector (AD1) Default Charge Voltage (Boost / Float): 28.8V DC / 27.6V DC Adjustable Charge Voltage Range (via VR): 21 - 30.4V DC Adjustable Charge Current Range (via VR): 6 - 12A (50% - 100% rated current) Max. Output Current: 12A Max. Output Power: 345.6W Recommended Battery Capacity: 40 - 125 AH Input Voltage Range: 90 - 264V AC (47 - 63Hz) or 127 - 370V DC (built-in PFC) Efficiency: approx. 91% Control & Features: 2 or 3-stage charging selectable via DIP switch, Thermal-controlled Fan ON/OFF Protection Functions: Short circuit, Over voltage, Over temperature, Battery reverse polarity (internal fuse) Dimensions & Weight: 182.7 x 96 x 49 mm (L x W x H) / 1.3 kg Manufacturer Warranty: 3 Years Information about the MEAN WELL NPB-360-24AD1 The MEAN WELL NPB-360-24AD1 is a compact and highly flexible 360W battery charger tailored for 24V battery configurations. Fitted with an Anderson-equivalent plug (AD1) on its output cable, it provides robust, high-current, quick-connect capability. It is fully compatible with lead-acid (flooded, GEL, AGM) and lithium-ion battery chemistries. The charger features manual hardware adjustment via front potentiometers, allowing charging voltage fine-tuning from 21V to 30.4V and output current control from 6A to 12A. A front DIP switch enables effortless toggling between 2-stage (Lithium) and 3-stage (Lead-acid) charging profiles. With high efficiency (~91%), intelligent fan cooling based on internal temperature, low no-load consumption (<0.15W), and dual safety certifications (UL/EN62368-1 and EN60335-1/-2-29), it offers a dependable charging solution for mobility scooters, specialty vehicles, and industrial equipment.

For Trucki use with the latest firmware Technical Information & Details for MEAN WELL NPB-1200-24 Battery Charger Product Type: Intelligent Ultra-Wide Output Battery Charger Default Charge Voltage (Boost / Float): 28.8V DC / 27.6V DC Charge Voltage Range: 21 - 42V DC Max. Output Current: 36A Max. Output Power: 1209.6W Recommended Battery Capacity: 120 - 420 AH Input Voltage Range: 90 - 264V AC (47 - 63Hz) or 127 - 370V DC Efficiency: approx. 94% Control & Interfaces: CANBus 2.0B, DIP S.W (2/3-stage & 4 curves), Programmable via SBP-001 Protection Functions: Short circuit, Over voltage, Over temperature, Battery under voltage, Reverse polarity Dimensions: 250 x 158 x 67 mm (L x W x H) Manufacturer Warranty: 3 Years Information about the MEAN WELL NPB-1200-24 The MEAN WELL NPB-1200-24 is a highly reliable, intelligent 1200W battery charger featuring an ultra-wide charging voltage range from 21V to 42V. Designed for high-performance applications, it supports both traditional lead-acid batteries (flooded, GEL, AGM) and lithium-ion batteries. Delivering a maximum output current of 36A and an impressive efficiency of up to 94%, it ensures optimal power conversion and rapid charging. Versatile charging management is built directly into the unit. Front-panel DIP switches allow users to easily switch between 2-stage and 3-stage charging modes as well as select pre-configured charging profiles. For complex or customized applications, parameters such as current limiters, charge voltages, and timeout settings can be programmatically controlled using the built-in CANBus 2.0B protocol or via the optional SBP-001 smart programmer. The charger also features a variable-speed cooling fan, NTC temperature compensation, remote control functionality, and compliance with dual safety standards (IEC/EN/UL62368-1 and EN60335-1/-2-29).

Technical Information & Details for MEAN WELL NPB-1200-12 Battery Charger Product Type: Intelligent Ultra-Wide Output Battery Charger Default Charge Voltage (Boost / Float): 14.4V DC / 13.8V DC Charge Voltage Range: 10.5 - 21V DC Max. Output Current: 70A Max. Output Power: 1176W Recommended Battery Capacity: 240 - 800 AH Input Voltage Range: 90 - 264V AC (47 - 63Hz) or 127 - 370V DC Efficiency: approx. 93% Control & Interfaces: CANBus 2.0B, DIP S.W (2/3-stage & 4 curves), Programmable via SBP-001 Protection Functions: Short circuit, Over voltage, Over temperature, Battery under voltage, Reverse polarity Dimensions: 250 x 158 x 67 mm (L x W x H) Manufacturer Warranty: 3 Years Information about the MEAN WELL NPB-1200-12 The MEAN WELL NPB-1200-12 is a highly reliable, intelligent 1200W battery charger engineered with an ultra-wide charging voltage range from 10.5V to 21V. It is suitable for both lead-acid (flooded, GEL, AGM) and lithium-ion batteries. Delivering up to 70A of maximum output current, it offers high power density and versatility for demanding charging applications. User-friendly customization is a key feature of the NPB-1200-12. Users can manually select 2-stage or 3-stage charging curves and choose from pre-defined battery curves using DIP switches on the front panel. Advanced configuration, such as fine-tuning current, voltage, and charging timeout, can be accomplished via the built-in CANBus 2.0B protocol or the optional SBP-001 programmer. Additional functions include a thermal-controlled cooling fan, remote ON/OFF control, NTC temperature compensation, and compliance with dual safety certifications (IEC/EN/UL62368-1 and EN60335-1/-2-29).

For Trucki use with the latest firmware Technical Information & Details for MEAN WELL NPB-1200-48 Battery Charger Product Type: Intelligent Ultra-Wide Output Battery Charger Default Charge Voltage (Boost / Float): 57.6V DC / 55.2V DC Charge Voltage Range: 42 - 80V DC Max. Output Current: 18A Max. Output Power: 1209.6W Recommended Battery Capacity: 60 - 210 AH Input Voltage Range: 90 - 264V AC (47 - 63Hz) or 127 - 370V DC Efficiency: approx. 92% Control & Interfaces: CANBus 2.0B, DIP S.W (2/3-stage & 4 curves), Programmable via SBP-001 Protection Functions: Short circuit, Over voltage, Over temperature, Battery under voltage, Reverse polarity Dimensions: 250 x 158 x 67 mm (L x W x H) Manufacturer Warranty: 3 Years Information about the MEAN WELL NPB-1200-48 The MEAN WELL NPB-1200-48 is a highly reliable, intelligent 1200W battery charger featuring an ultra-wide charging voltage range from 42V to 80V. Designed for demanding applications, it supports both traditional lead-acid battery chemistries (flooded, GEL, AGM) and lithium-ion batteries. Delivering up to 18A of maximum output current, it offers high power density and efficiency for 48V battery systems. Flexible charging management comes integrated directly into the hardware. Users can select 2-stage or 3-stage charging modes and choose from pre-defined battery profiles using front-panel DIP switches. For advanced setups, custom voltage thresholds, current limits, and charging timeouts can be programmed via the built-in CANBus 2.0B interface or using the optional SBP-001 smart programmer. Additional features include a variable-speed cooling fan, remote control capabilities, NTC temperature compensation, and compliance with dual safety certifications (IEC/EN/UL62368-1 and EN60335-1/-2-29).

Technical Specifications & Details for MEAN WELL NPB-1700-12 Charger Maximum Output Power: 1428 W Nominal Output Voltage: 12 V DC Charging Voltage Range: 10.5 V – 21 V (Adjustable) Maximum Charging Current: 85 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: Up to 92 % Power Factor: PF > 0.98 / 115 VAC (Full Load) Recommended Battery Capacity: 300 – 1000 Ah Operating Temperature: −30 °C to +70 °C Cooling: Thermal controlled DC fan for noise reduction Protection Functions: Short circuit, Over voltage, Over temperature, Battery under voltage, Reverse polarity Communication: Built-in CANBus protocol for control, setting, and monitoring Charging Stages: Selectable 2 or 3-stage charging curves Dimensions (L x W x H): 307.7 mm x 184 mm x 70 mm Weight: Approx. 2.96 kg Safety Standards: CB, DEKRA, UL62368-1, EN60335-1/-2-29, CE, EAC LED Indicator: Multi-color status LED (Charging, Full, Abnormal) Manufacturer Warranty: 3 Years Information about the MEAN WELL NPB-1700-12 The MEAN WELL NPB-1700-12 stands out as a high-performance, fully digital intelligent charger designed to deliver exceptional versatility for modern industrial and marine battery systems. Its defining strength lies in the ultra-wide output range and the sophisticated auto-detection technology, which automatically identifies the battery voltage to provide the most efficient charging cycle for Li-ion and Lead-acid batteries. Professionals benefit from the integrated CANBus 2.0B interface, enabling advanced digital control and real-time status monitoring, making it a perfect fit for complex setups like AGVs, telecommunication base stations, and specialty vehicles. The unit is engineered for durability and quiet operation, featuring a thermal-controlled fan and a wide operating temperature range from -30 °C to +70 °C. With user-friendly DIP switches for selecting between 2/3 stage charging and four preset curves, alongside comprehensive safety certifications and a 3-year warranty, the NPB-1700-12 ensures maximum battery life and operational safety in even the most demanding environments.

Technical Information & Details for MEAN WELL NPB-450-48 Power Supply Output Power: 456.96 W Output Voltage: 57.6 V DC (Charge Voltage Range: 42 – 80 V) Output Current: 6.8 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: 93% Power Factor: PF > 0.98 @ 115 VAC / PF > 0.95 @ 230 VAC Inrush Current: Max. 50 A @ 230 VAC (Cold start) AC Current: 4.5 A / 115 VAC, 2.2 A / 230 VAC Operating Temperature: −30 °C to +70 °C Cooling: Thermostatically controlled DC fan Protections: Short circuit, Over voltage, Over temperature, Battery reverse polarity, Battery under voltage Control & Communication: CANBus 2.0B, NFC interface (NFC models), DIP S.W (2/3-stage selectable) Isolation Voltage: 3000 V AC between Input and Output (I/P-O/P) Dimensions (H x W x D): 55 mm x 135 mm x 205 mm Weight: approx. 1.38 kg Safety & EMC Standards: CB, DEKRA, UL62368-1, BS EN/EN62368-1, BS EN/EN60335-1/-2-29, EAC Signal Functions: Charger OK & Battery Full (TTL signal), Remote ON/OFF, NTC temperature compensation Warranty: 3 Years Information on MEAN WELL NPB-450-48 Designed for demanding industrial charging setups, the MEAN WELL NPB-450-48 combines a 456.96 W output capacity with an ultra-wide charging voltage span of 42 to 80 V to safely power diverse lithium-ion and lead-acid battery packs. Integrators can easily customize charge curves or monitor real-time operating metrics using the unit's native CANBus 2.0B interface communication alongside contactless NFC configuration tools. The device features robust hardware safeguards including built-in reverse polarity protection and holds dual safety standard approval (UL62368-1 and EN60335-1/-2-29) for maximum operational reliability. With smart fan cooling for active temperature management and a full 3-year manufacturer warranty, it delivers high efficiency across automated machinery, telecommunications, and field power systems.

Technical Information & Details for MEAN WELL NPB-450-72 Power Supply Output Power: 453.6 W Output Voltage: 115.2 V DC (Charge Voltage Range: 54 – 100 V) Output Current: 4.2 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: 93.5% Power Factor: PF > 0.98 @ 115 VAC / PF > 0.95 @ 230 VAC Inrush Current: Max. 50 A @ 230 VAC (Cold start) AC Current: 4.5 A / 115 VAC, 2.2 A / 230 VAC Operating Temperature: −30 °C to +70 °C Cooling: Thermostatically controlled DC fan Protections: Short circuit, Over voltage, Over temperature, Battery reverse polarity, Battery under voltage Control & Communication: CANBus 2.0B, NFC interface (NFC models), DIP S.W (2/3-stage selectable) Isolation Voltage: 3000 V AC between Input and Output (I/P-O/P) Dimensions (H x W x D): 55 mm x 135 mm x 205 mm Weight: approx. 1.38 kg Safety & EMC Standards: CB, DEKRA, UL62368-1, BS EN/EN62368-1, BS EN/EN60335-1/-2-29, EAC Signal Functions: Charger OK & Battery Full (TTL signal), Remote ON/OFF, NTC temperature compensation Warranty: 3 Years Information on MEAN WELL NPB-450-72 Targeting higher voltage energy storage applications, the MEAN WELL NPB-450-72 provides a robust 453.6 W capacity alongside an ultra-wide charging voltage span of 54 to 100 V compatible with standard and custom battery chemistry stacks. Technical teams can effortlessly manage charging parameters or run diagnostics through native CANBus 2.0B interface communication and NFC touchless programming options. Built to withstand tough operational environments, this charger carries dual safety standard approval (UL62368-1 and EN60335-1/-2-29) along with hardware-level reverse polarity protection to prevent installation errors. Combined with active thermal fan control and a coverage-backed 3-year manufacturer warranty, it offers high efficiency for electric vehicles, AGVs, and industrial energy storage systems.
