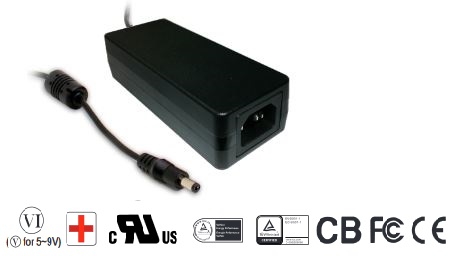

Technical Information & Details for MEAN WELL GSM60A24-P1J Power Supply Output Power: 60 W Output Voltage: 24 V DC Output Current: 2.5 A Input Voltage Range: 80 – 264 V AC, 47 – 63 Hz Efficiency: 90.5% Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 30 A @115 VAC / 60 A @230 VAC No-Load Power Consumption: < 0.15 W Operating Temperature: −30 °C to +70 °C Cooling: Free air convection Protections: Short circuit, Overload, Over voltage, Over temperature Overvoltage Category: Class I (with FG, IEC320-C14) Isolation Voltage: 4000 V AC input-to-output (2x MOPP) Dimensions (L x W x H): 125 mm x 50 mm x 31.5 mm Weight: approx. 250 g Safety & EMC Certificates: ANSI/AAMI ES60601-1, IEC/EN 60601-1, TUV, CB, EAC, CE, FCC LED Indicator: Power On Indicator Manufacturer Warranty: 3 years Information about MEAN WELL GSM60A24-P1J Featuring an impressive efficiency rating of up to 90.5%, the 24V desktop medical adaptor MEAN WELL GSM60A24-P1J meets rigid global healthcare specifications under ANSI/AAMI ES60601-1 (2x MOPP). Safe usage alongside patient-adjacent equipment is ensured thanks to an ultra-low touch current and reinforced 4000 V AC isolation voltage. Designed to maintain steady power delivery under demanding conditions, it runs seamlessly across an extended working temperature range of −30 °C to +70 °C for clinical workstations, portable hemodialysis machines, and medical displays. Dependable operation is backed by MEAN WELL's official 3-year warranty.
