AC PLUG-EU4

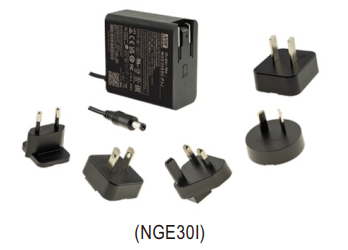

Technical Information & Details for the MEAN WELL NGE30I24-P1J Power Supply Output Power: 30 W Output Voltage: 24 V DC Output Current: 1.25 A Input Voltage Range: 80 – 264 V AC / 113 – 370 V DC, 47 – 63 Hz Efficiency: up to 88.5 % Ripple & Noise: ≤ 240 mVp-p Inrush Current: max. 35 A @115 VAC / 70 A @230 VAC No-Load Power Consumption: < 0.075 W Working Temperature: −30 °C to +70 °C Cooling: fanless natural convection Protection Functions: Short circuit, Overload, Over voltage Withstand Voltage: 4000 V AC between input and output Dimensions (L x W x H): 62 mm x 30 mm x 65 mm Weight: approx. 148 g Safety & EMC Certificates: CB, UL, DEKRA, EAC, CE, FCC, UKCA Manufacturer Warranty: 3 years Information about MEAN WELL NGE30I24-P1J The MEAN WELL NGE30I24-P1J is a highly adaptable wall-mounted green adapter equipped with interchangeable AC plugs, making it an exceptional power solution for international travel and multi-region industrial deployments. Featuring snap-in regional plug options spanning EU, US, UK, AU, CN, KR, and IN types, this 30 W unit delivering a steady 24 V DC output at 1.25 A conforms instantly to diverse power grids across the globe. Its ultra-slim 30 mm housing profile maximizes space efficiency in compact equipment configurations. Key highlights include an exceptionally low no-load power consumption of under 0.075 W and a wide operating temperature range spanning from -30 °C to +70 °C. The device incorporates comprehensive protection mechanisms against short circuits, overloads, and overvoltages featuring automatic fault recovery, while complying with stringent multi-field safety standards for industrial, medical, and household equipment. Backed by a dependable 3-year manufacturer warranty, this interchangeable adapter offers a future-proof, highly durable, and globally reliable energy solution.
