GSM12E18-P1J End of Life

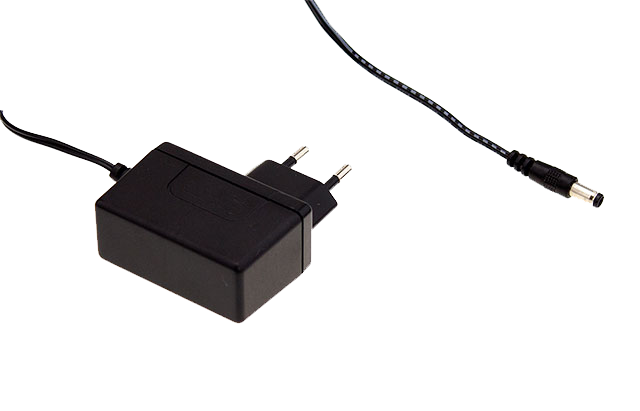

Technical Information & Details for MEAN WELL NGE12E18-P1J Power Adapter Output Power: 15 W Output Voltage: 18 V DC Output Current: 0.83 A Input Voltage Range: 80 – 264 V AC / 113 – 370 V DC, 47 – 63 Hz Efficiency: up to 88.5% Ripple & Noise: ≤ 180 mVp-p Inrush Current: max. 40 A @115 VAC / 80 A @230 VAC No-Load Power Consumption: < 0.075 W Operating Temperature: −30 °C to +70 °C Cooling: fanless natural convection Protections: Short circuit, Overload, Over voltage Overvoltage Category: Class II (without earth pin) Isolation Voltage: 4000 V AC between input and output Dimensions (H x W x D): 55 mm x 28 mm x 48 mm Weight: approx. 127 g Safety & EMC Certificates: CB, DEKRA, CE, EAC Connector Type: Fixed EU AC plug (non-interchangeable) / DC plug P1J (2.1 x 5.5 x 11 mm) Manufacturer Warranty: 3 years Information about MEAN WELL NGE12E18-P1J The MEAN WELL NGE12E18-P1J is a high-performance, compact 15 W wall-mounted power adapter with a fixed EU AC plug, designed to deliver a stable 18 V DC output for European power environments. Featuring an ultra-slim 28 mm profile, it fits conveniently on crowded outlet strips without blocking adjacent sockets. The power adapter provides exceptional operational efficiency up to 88.5% while maintaining an ultra-low no-load power consumption of under 0.075 W, fully complying with top-tier international green energy mandates such as EISA 2007/DoE, EU ErP, and CoC Version 5. Furthermore, its 4000 V AC reinforced insulation and minimal touch current under 100 µA ensure complete user and device safety. Designed for multi-domain deployment, the adapter carries comprehensive safety approvals across industrial, medical (2xMOPP, BF rated), household, and IT fields (IEC/EN 62368-1, 60601-1, 60335-1, 61558-1). Enclosed in a 94V-0 flame-retardant housing, it functions smoothly across a wide temperature spectrum from −30 °C to +70 °C. Outfitted with a standard P1J DC tuning fork connector and complete protective features against short circuit, overload, and overvoltage, MEAN WELL provides a highly reliable plug-in adapter backed by a 3-year manufacturer warranty.
