Technical Information & Details for MEAN WELL GST25B05-P1J Power Supply
- Output Power: 20 W
- Output Voltage: 5 V DC
- Output Current: 4.0 A
- Input Voltage Range: 85 – 264 V AC, 47 – 63 Hz
- Efficiency: 81.5%
- Ripple & Noise: ≤ 80 mVp-p
- Inrush Current: max. 35 A @115 VAC / 65 A @230 VAC
- No-Load Power Consumption: < 0.075 W
- Operating Temperature: −30 °C to +70 °C
- Cooling: fanless natural convection
- Protections: Short circuit, Overload, Over voltage
- Overvoltage Category: Class II (without FG)
- Isolation Voltage: 4242 V DC between input and output
- Dimensions (H x W x D): 33 mm x 54 mm x 79 mm
- Weight: approx. 191.5 g
- Safety & EMC Certificates: UL62368-1, EN62368-1, BSMI, CCC, PSE, CB, EAC, FCC, CE, UKCA
- LED Indicator: Power On Indicator
- Manufacturer Warranty: 3 Years
Information about MEAN WELL GST25B05-P1J

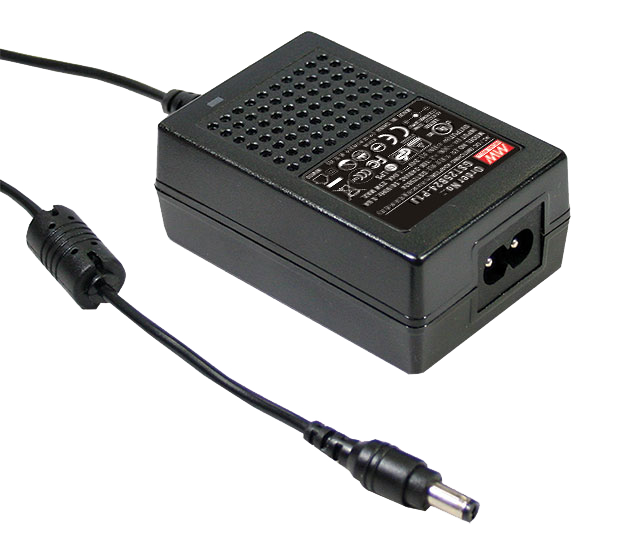

The MEAN WELL GST25B05-P1J is a highly reliable 20W Class II desktop green power adaptor engineered for exceptional performance and long-term durability. Featuring a standard 2-pole IEC320-C8 AC inlet and a universal P1J DC connector (2.1 x 5.5 mm), this unit provides a highly stable 5V DC output with up to 4.0A rated current. Enclosed in a fully flame-retardant 94V-0 plastic case, its double-insulated construction eliminates the need for a protective earth ground while ensuring robust protection against electrical hazards in various operating environments.
Designed with ecological efficiency at its core, the adapter boasts an ultra-low no-load power consumption below 0.075W and full compliance with global energy efficiency standards including Level VI, EU ErP, and CoC Version 5. This ensures optimized energy savings during both active operation and standby modes. Built-in protective mechanisms against short circuits, overloads, and overvoltage, combined with a broad operating temperature range from -30 °C to +70 °C, make the GST25B05-P1J an ideal power solution for commercial electronics, telecommunication equipment, industrial devices, and office automation facilities.
