Technical Information & Details for MEAN WELL GST160A36-R7B Power Supply
- Output Power: 160 W
- Output Voltage: 36 V DC
- Output Current: 4.44 A
- Input Voltage Range: 85 – 264 V AC / 120 – 370 V DC, 47 – 63 Hz
- Efficiency: up to 92%
- Ripple & Noise: ≤ 150 mVp-p
- Inrush Current: max. 95 A @115 VAC / 120 A @230 VAC
- No-Load Power Consumption: < 0.15 W
- Operating Temperature: −30 °C to +70 °C
- Cooling: fanless natural convection
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Overvoltage Category: Class I Power Unit (with FG)
- Isolation Voltage: 3000 V AC input to output
- Dimensions (L x W x H): 175 mm x 72 mm x 35 mm
- Weight: approx. 660 g
- Safety & EMC Certificates: UL62368-1, TUV BS EN/EN62368-1, CE, EAC, FCC, BSMI, CCC, PSE, RCM, CB
- LED Indicator: Power On Indicator
- Manufacturer Warranty: 3 Years
Information about MEAN WELL GST160A36-R7B

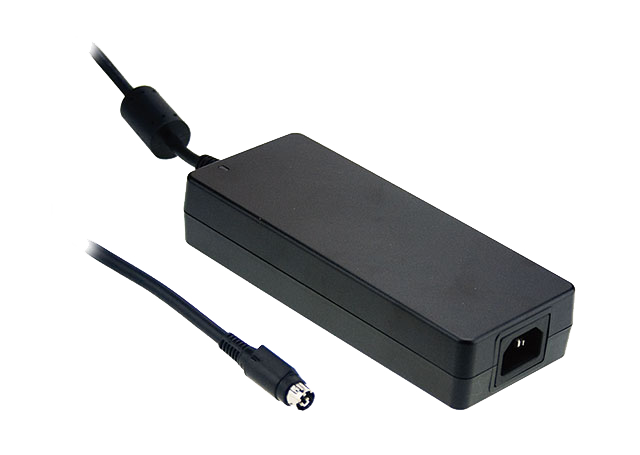

The MEAN WELL GST160A36-R7B is a highly dependable, green 160W desktop power adapter engineered to supply stable 36V DC power to telecom, IT, and industrial systems. Compliant with top global energy conservation directives such as Energy Efficiency Level VI and EU ErP, it operates with remarkable efficiency up to 92% while maintaining a no-load power dissipation of under 0.15W. Equipped with a built-in active PFC function and a wide universal AC input range of 85 to 264 VAC, this Class I adapter delivers high-grade power housed in a 94V-0 flame-retardant plastic chassis.
Designed with a secure 4-pin snap-lock Power DIN connector (R7B), the unit prevents accidental disconnections and provides a vibration-proof output connection. The fanless architecture relies on natural convection to ensure completely silent operation across a broad thermal range of −30 °C to +70 °C. Backed by full safety certifications, robust protection against short circuits, overloads, overvoltages, and thermal conditions, plus a 3-year manufacturer warranty, it serves as an ideal choice for power-critical environments.
