• Product Type: 18W High Reliability Industrial Desktop Power Adapter (Class I Power Unit, with FG)
• AC Input Voltage: 85 – 264 VAC (47 – 63 Hz)
• DC Output Voltage: 28 VDC
• Rated Current: 0.64 A
• Current Range: 0 – 0.64 A
• Rated Power: 18 W max.
• Efficiency: Typical 88.5%
• AC Inlet: 3-pole IEC320-C14 AC inlet
• DC Connector: P1J (Standard barrel plug 2.1mm ID x 5.5mm OD x 11mm length, Center + / Outer -)
• No Load Power Consumption: < 0.075 W
• Energy Efficiency Level: Level VI (compliant with USA EISA 2007/DoE, Canada NRCan, EU ErP, CoC Version 5)
• Protections: Short circuit, Overload (110–150% rated power, hiccup mode), Over voltage (110–140%, clamp by zener diode)
• Enclosure & Cooling: Fanless design in a fully enclosed flame-retardant plastic case (UL 94V-0)
• Operating Temperature Range: -30°C to +70°C (refer to derating curve)
• Safety & EMC Standards: UL62368-1, CSA C22.2 No.62368-1, BS EN/EN62368-1, BSMI CNS15598-1, CCC GB4943.1, PSE J62368-1, AS/NZS 62368.1, BIS IS13252, KC K60950-1, BS EN/EN55032 Class B, FCC Part 15 Class B
• Dimensions & Weight: 93 x 54 x 36 mm (L x W x H) / approx. 209 g
• Manufacturer Warranty: 3 Years

Information about the MEAN WELL GST18A28-P1J

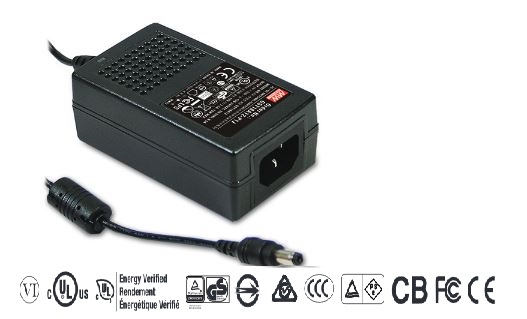

The MEAN WELL GST18A28-P1J is a highly reliable 18W industrial desktop power supply delivering a 28V DC output at up to 0.64A rated current. As a Class I power unit (with FG ground connection) equipped with a standard 3-pole IEC320-C14 AC inlet, it supports a wide universal AC input range from 85 to 264 VAC.

Engineered for high energy efficiency up to 88.5% and featuring an ultra-low no-load power consumption below 0.075W, the GST18A series complies with international energy-saving regulations under Energy Efficiency Level VI and EU ErP. Its fanless enclosure design enables silent operation across a broad operating temperature range of -30°C to +70°C inside a 94V-0 flame-retardant plastic housing.

For safe system operation, the GST18A28-P1J features comprehensive protective circuits against short circuit, overload (auto-recovering hiccup mode), and overvoltage conditions. The "P1J" model suffix designates a standard 2.1mm x 5.5mm DC barrel plug (11mm length), making this adapter ideal for consumer electronics, telecommunication devices, office facilities, and industrial equipment.
