Technical Information & Details for MEAN WELL GST90A15-P1M Power Supply
- Output Power: 90 W
- Output Voltage: 15 V DC
- Output Current: 6 A
- Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz
- Efficiency: up to 89%
- Ripple & Noise: ≤ 150 mVp-p
- Inrush Current: max. 35 A @115 VAC / 70 A @230 VAC
- No-Load Power Consumption: < 0.15 W
- Operating Temperature: −30 °C to +70 °C
- Cooling: fanless natural convection
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Overvoltage Category: Class I Power Unit (with FG)
- Isolation Voltage: 3000 V AC between Input and Output
- Dimensions (L x W x H): 145 mm x 60 mm x 32 mm
- Weight: approx. 450 g
- Safety & EMC Certificates: UL62368-1, TUV BS EN/EN62368-1, BSMI, CCC, PSE, CB, CE, EAC, UKCA
- LED Indicator: Power On Indicator
- Manufacturer Warranty: 3 Years
Information about the MEAN WELL GST90A15-P1M

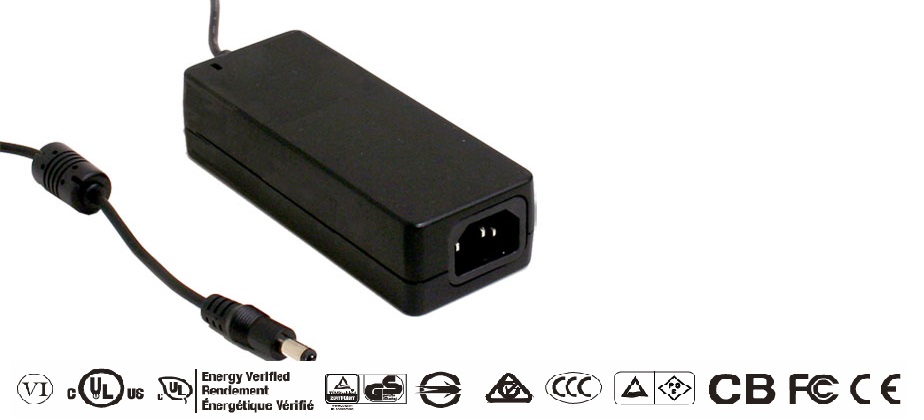

The MEAN WELL GST90A15-P1M is a highly reliable, energy-efficient 90W desktop-style green power adapter designed to provide continuous and stable power for industrial equipment, commercial systems, and consumer electronics. Equipped with a standard 3-pole IEC320-C14 AC inlet (Class I power unit) and built-in active Power Factor Correction (PFC), this desktop power supply delivers a precise 15V DC output voltage with a maximum rated current of 6 A. Constructed with a 94V-0 flame-retardant plastic enclosure, it supports an extended working temperature range of -30 °C to +70 °C under natural air convection.
A key strength of the GST90A series is its high operational efficiency of up to 89% combined with an extremely low no-load power consumption of less than 0.15 W, effortlessly satisfying international energy regulations such as Energy Efficiency Level VI, EU ErP, and CoC Version 5. The power supply provides comprehensive safety features including protection against short circuit, overload, overvoltage, and overtemperature. Featuring a standard P1M tuning fork DC plug (2.5 x 5.5 x 11 mm) and full global safety approvals, the MEAN WELL GST90A15-P1M stands out as a reliable long-term power solution backed by a 3-year manufacturer warranty.
