Technical Information & Details for MEAN WELL GST60A18-P1J Power Supply
- Output Power: 60 W
- Output Voltage: 18 V DC
- Output Current: 3.33 A
- Input Voltage Range: 90 – 264 V AC, 47 – 63 Hz
- Efficiency: 89.5 %
- Ripple & Noise: ≤ 150 mVp-p
- Inrush Current: max. 35 A @115 VAC / 65 A @230 VAC
- No-load Power Consumption: < 0.075 W
- Operating Temperature: −30 °C to +70 °C
- Cooling: Fanless natural convection
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Overvoltage Category: Class I power unit (with FG)
- Isolation Voltage: 3000 V AC primary to secondary
- Dimensions (L x W x H): 125 mm x 50 mm x 31.5 mm
- Weight: approx. 305 g
- Safety & EMC Certificates: UL62368-1, TUV BS EN/EN62368-1, CE, FCC, EAC, BSMI, PSE, CB
- LED Indicator: Power On Indicator
- Manufacturer Warranty: 3 Years

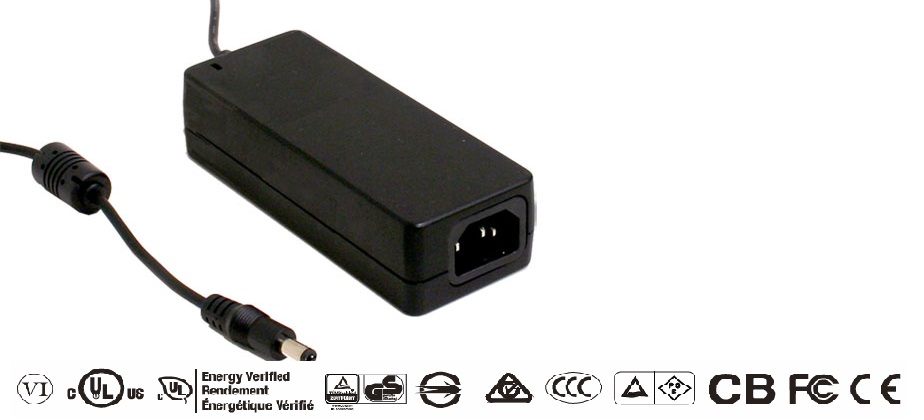

Information about MEAN WELL GST60A18-P1J
The MEAN WELL GST60A18-P1J is a highly reliable 60-watt desktop green power adapter designed to deliver efficient power for industrial equipment, commercial electronics, and telecommunications setups. Designed for global compatibility, it accepts a universal AC input range from 90 to 264 V AC and converts it to a regulated 18 V DC output at up to 3.33 A rated current. A key advantage of this series is its supreme energy management, highlighted by an **extremely low no-load power consumption below 0.075 W**, satisfying international guidelines such as Energy Efficiency Level VI, USA EISA 2007/DoE, and EU ErP rules inside a robust 94V-0 flame-retardant case.
Designed for multi-environment performance, the unit features an extended operating temperature range from -30 °C to +70 °C cooled completely by natural air convection. Comprehensive protection circuits safeguards connected equipment against short circuit, overload, overvoltage, and overtemperature conditions. Power entry is provided via a standard 3-pole IEC320-C14 AC inlet, while the DC output utilizes a standard P1J tuning fork plug (2.1 mm x 5.5 mm). An integrated LED power-on indicator ensures fast visual status diagnostics, making it an ideal choice for diverse industrial and IT hardware installations.
