Technical Information & Details for the MEAN WELL NDR-240-24 Power Supply Output Power: 240 W Output Voltage: 24 V DC Output Current: 10 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: up to 89 % Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 45 A @230 VAC No-Load Power Consumption: < 0.5 W Operating Temperature: −20 °C to +70 °C Cooling: fanless natural convection Protection Features: short-circuit, overload, overvoltage, overtemperature Overvoltage Category: OVC II Isolation Voltage: 3000 V AC between input and output Dimensions (H x W x D): 125.2 mm x 63 mm x 113.5 mm Weight: approx. 1.2 kg Safety & EMC Certificates: CE, UL 508, TUV, CB, EAC LED Indicator: Power On Indicator Manufacturer Warranty: 3 years About the MEAN WELL NDR-240-24 The MEAN WELL NDR-240-24 is a high-power 240 W DIN-rail power supply with built-in active PFC for maximum efficiency and stability at 24 V DC / 10 A output. It excels with excellent efficiency up to 89 %, completely fanless convection cooling, and rugged metal housing for demanding industrial environments. Full protection features with constant current mode and automatic recovery ensure maximum operational safety against short-circuit, overload, and overvoltage. The universal 90–264 V AC input range makes it ideal for large PLC systems, machine building, plant control, and industrial automation. With international certifications, the NDR-240-24 offers high power density, extreme durability, and perfect integration into professional control cabinets.

240W Breiter Eingangsbereich Kompaktes DIN Hutschienen Netzteile 240W Wide Input Range, Compact DIN Rail Power Supply

Technical Information & Details for the MEAN WELL NDR‑120‑24 Power Supply Output Power: 120 W Output Voltage: 24 V DC Output Current: 5 A Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: up to 88 % Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 20 A @115 VAC / 40 A @230 VAC No-Load Power Consumption: < 0.75 W Operating Temperature: −20 °C to +70 °C Cooling: fanless natural convection Protection Features: short-circuit, overload, overvoltage, overtemperature Overvoltage Category: OVC II Isolation Voltage: 3000 V AC between input and output Dimensions (H x W x D): 125.2 mm x 40 mm x 113.5 mm Weight: approx. 670 g Safety & EMC Certificates: CE, UL 508, TUV, CB, EAC LED Indicator: Power On Indicator Manufacturer Warranty: 3 years About the MEAN WELL NDR-120-24 The MEAN WELL NDR-120-24 is a powerful DIN-rail industrial power supply delivering 120 W with stable 24 V DC / 5 A output. It excels with superior efficiency up to 88 %, fanless natural convection cooling for silent operation, and a ultra-narrow 40 mm metal housing. Comprehensive protection features (short-circuit, overload, overvoltage, overtemperature) with automatic recovery ensure maximum operational safety. Ideal for PLC controls, industrial automation, sensor networks, and building management systems – the universal 90–264 V AC input range enables global deployment. With international certifications, the NDR-120-24 provides optimal energy efficiency, durability, and space savings in demanding industrial environments.

Technical Information & Details about the MEAN WELL HDR-100-24 Power Supply Output Power: 92 W Output Voltage: 24 V DC Output Current: 3.83 A Current Range: 0 – 3.83 A Input Voltage Range: 85 – 264 V AC (277 V AC operational) / 120 – 370 V DC (390 V DC operational), 47 – 63 Hz Efficiency: up to 90 % Ripple & Noise: ≤ 150 mVp-p Output Voltage Adjustment Range (LPS type): 24 – 25.5 V DC Extended Adjustment Range (Non‑LPS “N” type): 21.6 – 29 V DC Voltage Tolerance: ±2.0 % Line Regulation: ±1.0 % Load Regulation: ±1.0 % Setup, Rise Time: 500 ms, 60 ms @230 V AC / 115 V AC (full load) Hold-up Time: 30 ms @230 V AC / 12 ms @115 V AC (full load) AC Input Current (typ.): 3 A @115 V AC / 1.6 A @230 V AC Inrush Current: 35 A @115 V AC / 70 A @230 V AC (cold start) No-load Power Consumption: < 0.3 W Operating Temperature: −30 °C to +70 °C (with derating according to curve) Operating Humidity: 20 – 90 % RH, non‑condensing Storage Conditions: −40 °C to +85 °C, 10 – 95 % RH, non‑condensing Cooling: fanless free air convection Protection Features: short circuit (hiccup mode, auto recovery), overload (constant current limiting within 50–100 % of rated output voltage, auto recovery), overvoltage (shut down, re‑power to recover) Overvoltage Protection Threshold: 30 – 36 V DC Overvoltage Category: OVC III (up to 2000 m altitude) Isolation Voltage: 4000 V AC between input and output Isolation Resistance: ≥ 100 MΩ @ 500 V DC, 25 °C, 70 % RH Dimensions (W x H x D): 70 mm x 90 mm x 54.5 mm Weight: approx. 270 g Housing Material: insulating plastic housing, Class II, ultra‑slim 4‑SU step‑shape Mounting: DIN rail TS35/7.5 or TS35/15 Vibration Resistance: 10 – 500 Hz, 2 G, 60 min per axis (X, Y, Z) Safety & EMC Certificates: UL 62368‑1, UL 508, TUV BS EN/EN 61558‑2‑16, BS EN/EN 61558‑1, IEC 62368‑1, EAC TP TC 004, BSMI CNS15598‑1, BIS IS13252, compliant with BS EN/EN 55032, BS EN/EN 55035, BS EN/EN 61000‑6‑2, BS EN/EN 61204‑3 LPS Classification: Pass LPS for “blank” models (up to 92 W, narrower adjustment range), Non‑LPS for “N” models (up to 100.8 W with wider adjustment range) LED Indicator: Power‑On status LED Manufacturer Warranty: 3 years About the MEAN WELL HDR-100-24 The MEAN WELL HDR-100-24 is an ultra‑slim 100 W class DIN‑rail power supply that provides a regulated 24 V DC output at up to 3.83 A in a compact 70 mm (4 SU) housing, ideal for space‑constrained 24 V control panels. With a universal input range, high efficiency up to 90 %, very low no‑load consumption and fanless free air convection, it delivers an energy‑efficient 24 V bus for building automation, household control systems and industrial control cabinets. LPS‑compliant “blank” models with a tighter adjustment window and higher‑power “N” versions with an extended adjustment range up to 29 V give designers flexibility between safety classification and additional voltage headroom. Together with the Class II plastic enclosure, comprehensive protection features and broad international approvals, HDR-100-24 is a robust, low‑maintenance 24 V power solution for PLCs, I/O modules, valves, relays and other 24 V control electronics.

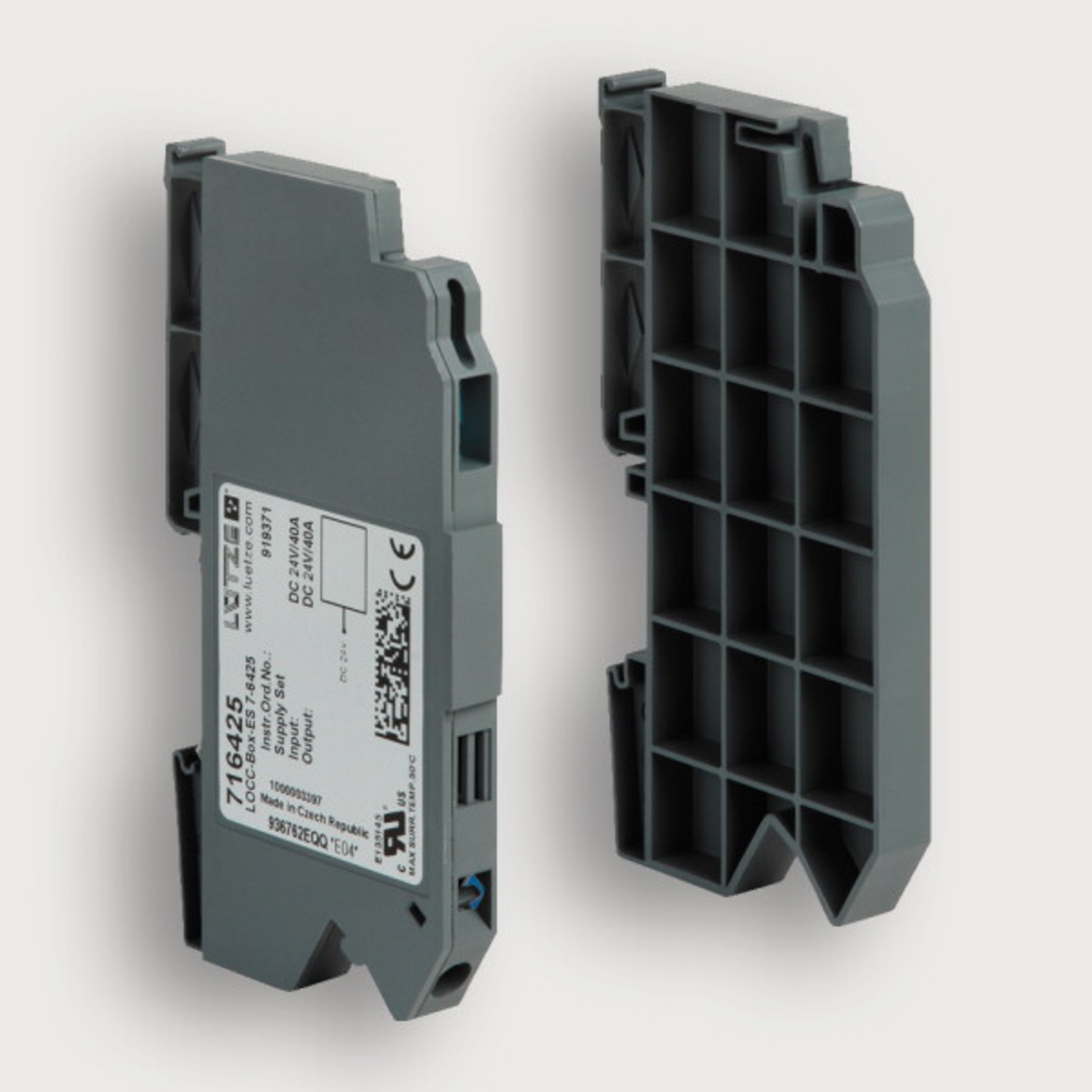

Technical Information & Details for LÜTZE LOCC-Box-ES 7-6425 Supply Set Components: Supply terminal and end block Maximum Total Current: 40 A Housing Material: PA 6.6 (UL 94 V-0, NNF I2, F2) Mounting: Snap-on for DIN rail TS35 (EN 60715) Protection Rating: IP20 Installation Position: Any Operating Temperature Range: −25 °C to +50 °C Storage Temperature Range: −40 °C to +85 °C Dimensions (W x H x D): 10.0 mm x 119.4 mm x 63.7 mm Weight: 0.035 kg/unit Certifications: cULus (E135145) Application: Accessories for LOCC-Box load monitoring systems Manufacturer Warranty: 2 years Information about the LÜTZE LOCC-Box-ES 7-6425 The LÜTZE LOCC-Box-ES 7-6425 Supply Set serves as the essential power entry point for professional-grade load monitoring within the LOCC-Box ecosystem. Comprising a robust supply terminal and a dedicated end block, this set is engineered to handle a maximum total current of 40 A, ensuring a stable and efficient energy flow to connected modules. The use of premium Polyamide 6.6 housing material, which meets strict UL 94 V-0 and international NNF fire safety standards, guarantees superior operational safety and mechanical durability even in the most demanding industrial automation environments. One of the primary strengths of this supply set is its highly efficient installation process, featuring a quick snap-on mechanism for standard TS35 DIN rails that requires no specialized tools. Its ultra-slim 10 mm profile significantly optimizes space management within high-density control cabinets, while the versatile mounting orientation provides engineers with maximum design freedom. Backed by global cULus certification, the LOCC-Box-ES set is a reliable, worldwide-compatible solution for anyone requiring vibration-proof and maintenance-free power distribution for their electronic circuit protection systems.

Technical Information & Details for LÜTZE LOCC-Box-BKB 7-6440 Jumper Comb Accessory Type: Insulated jumper comb Number of Poles: 16-pole Nominal Current: DC 6 A Connection Type: Plug-in Contact Design: Flat contact 0.5 mm Pitch: 8.2 mm Contact Material: FeZn (zinc-plated iron) Insulation Material: Hard PVC Color: Blue Flammability Class: V0 according to UL 94 Operating Temperature Range: −40 °C to +80 °C Storage Temperature Range: −40 °C to +80 °C Weight: 0.006 kg per unit Packaging Unit (PU): 5 units Special Feature: Can be shortened individually Manufacturer Warranty: 2 years Information about the LÜTZE LOCC-Box-BKB 7-6440 The LÜTZE LOCC-Box-BKB 7-6440 jumper comb is a vital system component designed for the streamlined and reliable cross-connection of LOCC-Box load monitoring modules. This 16-pole insulated busbar facilitates the rapid distribution of potentials or signals across multiple channels, effectively eliminating the need for complex and error-prone individual wiring. Manufactured from high-grade hard PVC in a distinct blue finish, it ensures clear circuit identification within the control panel while providing maximum flame retardancy according to the UL 94 V0 standard for industrial safety. Equipped with precision zinc-plated iron contacts and an exact 8.2 mm pitch, this jumper comb delivers a vibration-proof and low-loss connection optimized for a nominal current of up to 6 A. A significant functional advantage is its modular flexibility, as the comb can be easily cut to size to match the specific number of poles required for a given installation. Combined with its ability to withstand extreme environmental conditions from −40 °C to +80 °C, the LOCC-Box-BKB stands out as a durable and highly efficient interconnect solution for modern automation and electrical cabinet assembly.
