GEM18I05-P1J Auslaufmodell

Technical Information & Details for MEAN WELL NGE18I05-P1J Power Supply Output Power: 15 W Output Voltage: 5 V DC Output Current: 3 A Input Voltage Range: 80 – 264 V AC / 113 – 370 V DC, 47 – 63 Hz Efficiency: 82 % Ripple & Noise: ≤ 60 mVp-p Inrush Current: max. 40 A @ 115 VAC / 80 A @ 230 VAC No-Load Power Consumption: < 0.075 W Operating Temperature: −30 °C to +70 °C Cooling: Free air convection (fanless) Protections: Short circuit, Overload, Over voltage Overvoltage Category: Pass LPS (Limited Power Source) Isolation Voltage: 4000 V AC between input and output Dimensions (H x W x D): 55 mm x 28 mm x 48 mm Weight: approx. 112 g Safety & EMC Certificates: CB, UL62388-1, DEKRA, BS EN/EN62368-1, EAC, CE, FCC LED Indicator: None Manufacturer Warranty: 3 Years Information about MEAN WELL NGE18I05-P1J The MEAN WELL NGE18I05-P1J is a highly reliable, 18W wall-mounted interchangeable green adapter designed to deliver exceptional flexibility and performance in a compact form factor. Featuring an ultra-slim 28mm profile and supporting interchangeable AC plugs (European, US, UK, Australian, China, Korean, and Indian types), this power supply is an ideal choice for global applications and travel. Operating across a wide universal input range of 80 to 264 VAC, the NGE18I05-P1J model outputs a stable 5 V DC at 3 A, making it perfectly suited for consumer electronics, medical equipment, telecommunications, household appliances, and industrial controllers. Designed with sustainability and safety at its core, the adapter boasts an extremely low no-load power consumption below 0.075 W, complying with top-tier international efficiency standards including Energy Efficiency Level VI and EU ErP. As a Class II power unit (no earth ground required), it ensures superior electrical safety with an impressive 4000 VAC isolation rating and an extremely low leakage current below 100 µA (compliant with 2xMOPP medical rating). Housed in a 94V-0 flame-retardant plastic enclosure and equipped with automatic protections against short circuits, overloads, and overvoltage, this power supply backed by a 3-year manufacturer warranty provides robust, long-term operational performance across a wide operating temperature spectrum.

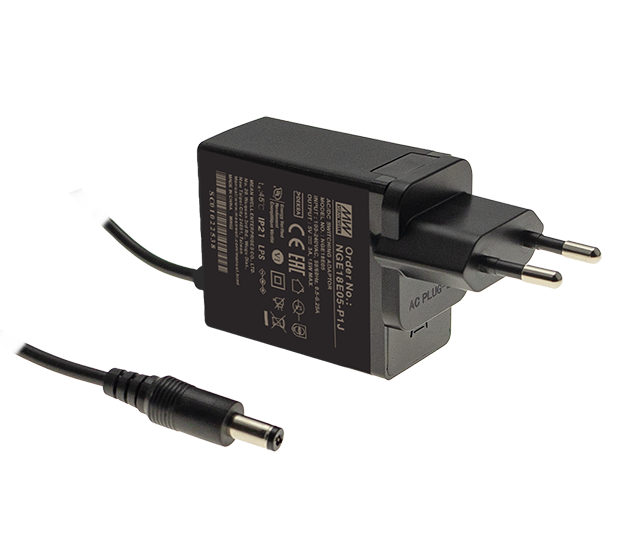

Technical Information & Details for MEAN WELL NGE18E05-P1J Power Supply Output Power: 15 W Output Voltage: 5 V DC Output Current: 3 A Input Voltage Range: 80 – 264 V AC / 113 – 370 V DC, 47 – 63 Hz Efficiency: 82 % Ripple & Noise: ≤ 60 mVp-p Inrush Current: max. 40 A @ 115 VAC / 80 A @ 230 VAC No-Load Power Consumption: < 0.075 W Operating Temperature: −30 °C to +70 °C Cooling: Free air convection (fanless) Protections: Short circuit, Overload, Over voltage Overvoltage Category: Pass LPS (Limited Power Source) Isolation Voltage: 4000 V AC between input and output Dimensions (H x W x D): 55 mm x 28 mm x 48 mm Weight: approx. 127 g Safety & EMC Certificates: CB, DEKRA, BS EN/EN62368-1, EAC, CE LED Indicator: None Manufacturer Warranty: 3 Years Information about MEAN WELL NGE18E05-P1J The MEAN WELL NGE18E05-P1J is a highly reliable, 18W European version wall-mounted green adapter designed with a fixed EU AC plug for seamless operation in standard European outlets. Featuring an ultra-slim 28mm profile, it provides a compact and space-saving plug-in solution. Operating efficiently on a broad universal input range of 80 to 264 VAC, this NGE18E05-P1J model provides a regulated output of 5 V DC at 3 A, making it ideal for consumer electronics, medical equipment, telecommunications, household appliances, and compact commercial systems. Built with sustainability and user safety as primary design elements, the adapter features an extraordinarily low no-load power consumption under 0.075 W, meeting stringent eco-design regulations including Energy Efficiency Level VI and EU ErP. As a Class II power unit (no earth pin required), it guarantees elevated electrical isolation rated at 4000 VAC withstand voltage and maintains a leakage current below 100 µA (compliant with 2xMOPP medical guidelines). Protected by a 94V-0 flame-retardant plastic enclosure alongside built-in short circuit, overload, and overvoltage protections, this power supply comes backed by a 3-year manufacturer warranty for dependable, long-term operation.
