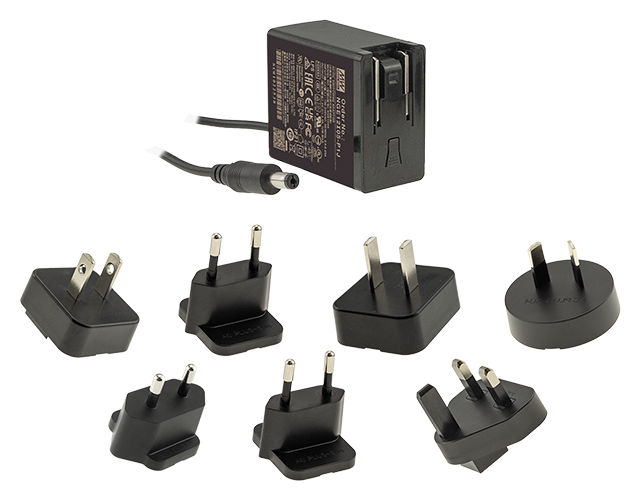

Technical Information & Details for MEAN WELL NGE12I12-P1J Power Adapter Output Power: 12 W Output Voltage: 12 V DC Output Current: 1.0 A Input Voltage Range: 80 – 264 V AC / 113 – 370 V DC, 47 – 63 Hz Efficiency: up to 85.5% Ripple & Noise: ≤ 120 mVp-p Inrush Current: max. 40 A @115 VAC / 80 A @230 VAC No-Load Power Consumption: < 0.075 W Operating Temperature: −30 °C to +70 °C Cooling: fanless natural convection Protections: Short circuit, Overload, Over voltage Overvoltage Category: Class II (without earth pin) Isolation Voltage: 4000 V AC between input and output Dimensions (H x W x D): 55 mm x 28 mm x 48 mm Weight: approx. 112 g Safety & EMC Certificates: CB, UL, DEKRA, CE, FCC, EAC, CCC, RCM, BSMI, KC, BIS Connector Type: Interchangeable AC plugs (I-Type) / DC plug P1J (2.1 x 5.5 x 11 mm) Manufacturer Warranty: 3 years Information about MEAN WELL NGE12I12-P1J The MEAN WELL NGE12I12-P1J is an advanced, highly reliable 12 W wall-mounted power adapter delivering 12 V DC output, crafted for flexible applications around the globe. Featuring an ultra-slim 28 mm casing and an interchangeable AC plug mechanism (supporting EU, US, UK, AU, CN, KR, and IN plug adapters), it serves as the perfect power companion for portable electronics, telecom equipment, and international export products. Achieving high operating efficiency up to 85.5% alongside a tiny no-load power consumption of less than 0.075 W, the device comfortably complies with top-level international standards like EISA 2007/DoE, EU ErP, and CoC Version 5. Reinforced 4000 V AC insulation and a low touch current below 100 µA guarantee superior protection during continuous operation. Beyond its physical mobility, this power adapter is backed by comprehensive multi-field safety compliance across industrial, medical (2xMOPP, BF rated), household, and IT standards (IEC/EN 62368-1, 60601-1, 60335-1, 61558-1). Constructed with a 94V-0 flame-retardant enclosure, it functions smoothly across a broad temperature span from −30 °C to +70 °C. Complete with a standard P1J DC tuning fork connector and full safeguards against short circuit, overload, and overvoltage, MEAN WELL offers an exceptionally durable power adapter supported by a 3-year manufacturer warranty.

Technical Information & Details for MEAN WELL NGE12E12-P1J Power Adapter Output Power: 12 W Output Voltage: 12 V DC Output Current: 1.0 A Input Voltage Range: 80 – 264 V AC / 113 – 370 V DC, 47 – 63 Hz Efficiency: up to 85.5% Ripple & Noise: ≤ 120 mVp-p Inrush Current: max. 40 A @115 VAC / 80 A @230 VAC No-Load Power Consumption: < 0.075 W Operating Temperature: −30 °C to +70 °C Cooling: fanless natural convection Protections: Short circuit, Overload, Over voltage Overvoltage Category: Class II (without earth pin) Isolation Voltage: 4000 V AC between input and output Dimensions (H x W x D): 55 mm x 28 mm x 48 mm Weight: approx. 127 g Safety & EMC Certificates: CB, DEKRA, CE, EAC Connector Type: Fixed EU AC plug (non-interchangeable) / DC plug P1J (2.1 x 5.5 x 11 mm) Manufacturer Warranty: 3 years Information about MEAN WELL NGE12E12-P1J The MEAN WELL NGE12E12-P1J is a high-performance, compact 12 W wall-mounted power adapter with a fixed EU AC plug, designed to deliver a stable 12 V DC output for European power environments. Featuring an ultra-slim 28 mm profile, it fits conveniently on crowded outlet strips without blocking adjacent sockets. The power adapter provides exceptional operational efficiency up to 85.5% while maintaining an ultra-low no-load power consumption of under 0.075 W, fully complying with top-tier international green energy mandates such as EISA 2007/DoE, EU ErP, and CoC Version 5. Furthermore, its 4000 V AC reinforced insulation and minimal touch current under 100 µA ensure complete user and device safety. Designed for multi-domain deployment, the adapter carries comprehensive safety approvals across industrial, medical (2xMOPP, BF rated), household, and IT fields (IEC/EN 62368-1, 60601-1, 60335-1, 61558-1). Enclosed in a 94V-0 flame-retardant housing, it functions smoothly across a wide temperature spectrum from −30 °C to +70 °C. Outfitted with a standard P1J DC tuning fork connector and complete protective features against short circuit, overload, and overvoltage, MEAN WELL provides a highly reliable plug-in adapter backed by a 3-year manufacturer warranty.
