RPS-400-24-C

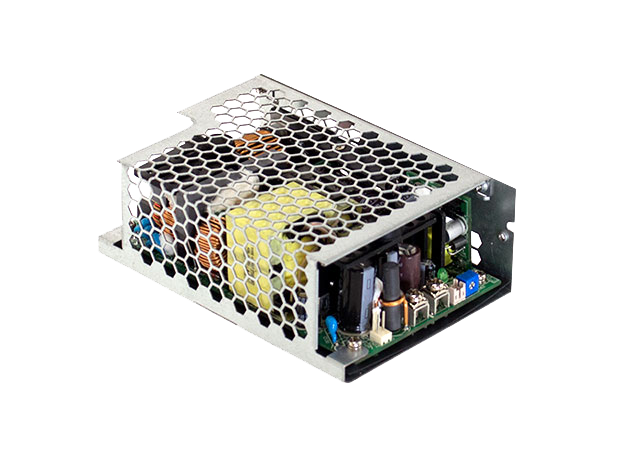

Technical Information & Details for MEAN WELL RPS-500-24-C Power Supply Output Power: 321.6 W (Convection) / 501.6 W (with Fan) Output Voltage: 24 V DC Output Current: 13.4 A (Convection) / 20.9 A (with Fan) Input Voltage Range: 80 – 264 V AC / 113 – 370 V DC Efficiency: up to 94% Ripple & Noise: ≤ 200 mVp-p Inrush Current: max. 40 A @115 VAC / 80 A @230 VAC No-load Power Consumption: < 0.5 W (via PS_ON control) Operating Temperature: −30 °C to +70 °C Cooling: Natural convection or forced air cooling Protection Functions: Short circuit, Overload, Over voltage, Over temperature Design: Enclosed Type (with metallic case) Isolation Voltage: 4000 V AC (Input to Output) / 2xMOPP Dimensions (L x W x H): 130 mm x 86 mm x 43 mm Weight: approx. 610 g Safety & EMC Certificates: ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1, CE Advanced Features: 5Vsb Standby, 12V Fan Supply, Remote Sense Manufacturer Warranty: 3 Years Information about the MEAN WELL RPS-500-24-C The MEAN WELL RPS-500-24-C is a premium 500W medical grade power supply housed in a durable enclosed metal chassis for maximum physical protection and electrical shielding. This 24V model is highly distinguished by its exceptional efficiency of up to 94%, ensuring minimal heat dissipation and enhanced longevity in critical healthcare environments. Featuring 2xMOPP isolation approval and compliance with BF-rated equipment standards, it offers top-tier patient safety for mission-critical applications such as hemodialysis machines, surgical pumps, and high-resolution medical monitors. A primary strength of the RPS-500-24-C is its operational versatility, providing 321.6W under natural convection and scaling up to its full 500W capacity with forced air cooling. The unit is equipped with advanced system control features, including Remote Sense, Power Good signaling, and a dedicated 5V standby output to maintain peripheral logic. With its ability to handle peak power demands of up to 550W for short durations and its reliable operation at altitudes up to 4000 meters, this power supply is a robust and dependable choice for sophisticated clinical diagnostic equipment and automated medical systems.

Technical Information & Details for the MEAN WELL RPS-300-24-C Power Supply Output Power: 300 W (with 20.5CFM fan) / 200 W (convection) Output Voltage: 24 V DC (adjustable 22.8 – 25.2 V) Output Current: 12.5 A (with fan) / 8.33 A (convection) Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz Efficiency: up to 91 % Ripple & Noise: ≤ 150 mVp-p Inrush Current: max. 35 A @115 VAC / 70 A @230 VAC No Load Power Consumption: < 0.5 W (via PS-ON control) Operating Temperature: −30 °C to +70 °C Cooling: Enclosed casing type for forced air or natural convection Protections: Short circuit, Overload, Over voltage, Over temperature Medical Safety Level: 2 x MOPP, BF rated for patient contact Isolation Voltage: 4000 V AC (Primary to Secondary) Dimensions (L x W x H): 130 mm x 86 mm x 43 mm Weight: approx. 563 g Safety & EMC Certificates: ANSI/AAMI ES60601-1, IEC60601-1, TUV EN60601-1, CE, EAC Auxiliary Outputs: 5Vdc standby output & 12Vdc fan supply Manufacturer Warranty: 3 Years Information about the MEAN WELL RPS-300-24-C The MEAN WELL RPS-300-24-C is a specialized medical-grade 24V power supply designed to provide uncompromising reliability in high-stakes healthcare environments. This unit is fully certified with 2 x MOPP (Means of Patient Protection) and is BF (Body Floating) rated, ensuring it meets the stringent safety requirements for equipment with direct patient contact. Its "green" power architecture is a primary strength, featuring an extremely low leakage current of under 150 µA and a no-load power consumption of less than 0.5W, making it an environmentally friendly and safe choice for medical computer monitors, hemodialysis machines, and sleep apnea devices. Technically, the RPS-300-24-C excels through its high 91% efficiency and its ability to deliver a full 300W of power with forced air cooling or 200W through natural convection. The enclosed design provides added mechanical protection while maintaining a compact 5" by 3" footprint. Key unique characteristics include the integrated 12V fan supply and a 5V standby output, which simplify system design by eliminating the need for secondary power sources. Furthermore, the Remote Sense capability ensures precise 24V delivery by compensating for voltage drops in wiring, while the 3-year manufacturer warranty and a typical lifetime of over 40,000 hours underscore its industrial-grade durability.

In: 80-264VAC 47-63Hz  113-370VDCOut: 24VDC (adj.22,8-25,2VDC) / 202W / 8,4A / Eff. 94% / 104x62x40mm

Technical Information & Details for MEAN WELL RSD-30G-12 Power Supply Output Power: 30 W Output Voltage: 12 V DC Output Current: 2.5 A Input Voltage Range: 9 – 36 V DC (4:1 Wide Input) Efficiency: 84 % Ripple & Noise: ≤ 60 mVp-p Inrush Current: 20 A @ 24 VDC No-load Power Consumption: < 0.5 W Operating Temperature: −40 °C to +70 °C Cooling: fanless free air convection (half-encapsulated) Protections: Short circuit, Overload, Over voltage, Input reverse polarity Isolation Voltage: 4000 V DC reinforced isolation (I/O) Dimensions (L x W x H): 113 mm x 60 mm x 25 mm Weight: approx. 250 g Safety & Railway Certificates: EN50155, EN45545-2, UL 62368-1, CB, CE, EAC LED Indicator: Power On indicator Manufacturer Warranty: 3 Years Information about the MEAN WELL RSD-30G-12 The MEAN WELL RSD-30G-12 is a professional-grade Railway DC-DC converter engineered to withstand the most rigorous conditions found in transit systems and heavy industrial applications. This unit is distinguished by its full compliance with EN50155 and EN45545-2 railway standards, ensuring high reliability against mechanical shock, vibration, and stringent fire safety requirements. Its ultra-compact 1U low-profile design, with a height of only 25 mm, makes it the ideal choice for space-limited modern installations, while the 4:1 wide input range from 9 to 36 V DC allows for flexible use across various standard battery voltages used in the railway industry. A key strength of the RSD-30G-12 is its half-encapsulated design, which protects internal components from dust and high humidity while facilitating cooling through natural air convection, eliminating the need for failure-prone fans. The 4000 V DC reinforced isolation provides an exceptionally high level of safety and noise immunity for downstream electronic circuits. Equipped with comprehensive protections including input reverse polarity protection and a built-in constant current limiting circuit, and backed by a 3-year manufacturer warranty, this converter offers a highly durable and dependable power solution for telecommunications, wireless networks, and critical automation infrastructure.
