RPD-75A

Product information "RPD-75A"

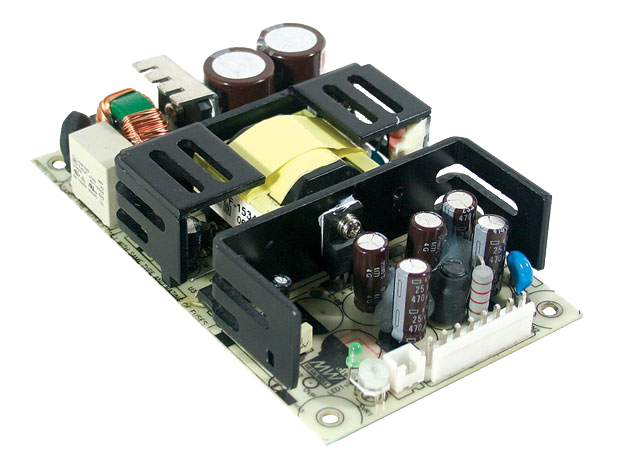

Technical Information & Details for the MEAN WELL RPD-75A Power Supply

  • Output Power: 73 W
  • Output Voltage: CH1: 5 V DC, CH2: 12 V DC (Dual Output)
  • Output Current: CH1: 7 A, CH2: 3 A
  • Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz
  • Efficiency: up to 79 %
  • Ripple & Noise: CH1: 80 mVp-p, CH2: 120 mVp-p
  • Inrush Current: max. 25 A @115 VAC / 50 A @230 VAC
  • Operating Temperature: −20 °C to +70 °C
  • Cooling: Fanless free air convection (or 23.5 CFM forced air for peak load)
  • Protections: Short circuit, Overload, Over voltage
  • Isolation Level & Withstand Voltage: Primary-Secondary: 2xMOPP, Primary-Earth: 1xMOPP (I/P-O/P: 4000 V AC)
  • Dimensions (L x W x H): 127 mm x 76,2 mm x 31 mm (5" x 3")
  • Weight: approx. 250 g
  • Safety & EMC Certifications: IEC/EN 60601-1, ANSI/AAMI ES60601-1, TUV, CB, EAC, CE
  • Manufacturer Warranty: 3 years

Information about the MEAN WELL RPD-75A

Engineered specifically for medical and sensitive electronic environments, the MEAN WELL RPD-75A delivers high power density within a space-saving 5"x3" PCB footprint[cite: 2]. This premium dual-output power supply incorporates an extremely low earth leakage current of under 150 µA alongside strict2xMOPP isolation compliance to ensure maximum patient safety in BF-rated healthcare applications[cite: 2, 3]. Thermal management relies on efficient convection cooling, while robust internal circuitry protects against overloads and short circuits.

System designers benefit heavily from compliance with internationalIEC/EN 60601-1 medical safety standards and rigorous EMC Class B emission thresholds[cite: 2, 3]. Furthermore, the unit features a wide operating temperature range spanning from−20 °C to +70 °C, guaranteeing long-term operational stability in compact medical diagnostic tools, monitors, and laboratory devices[cite: 3].


Verfügbare Downloads
Download RPD-75A Datenblatt
Eigenschaften für "RPD-75A"
2-Channel: 5 / 12
Approval: CB, CE, TÜV
Efficiency: 77%
Height: 31
Length: 127
Series: RPD
Voltage: 5 VDC, 12 VDC
Warranty: 3 years
Wattage: 71 W
Weight: 0,27kg
Width: 76
