GSM25E12-P1J

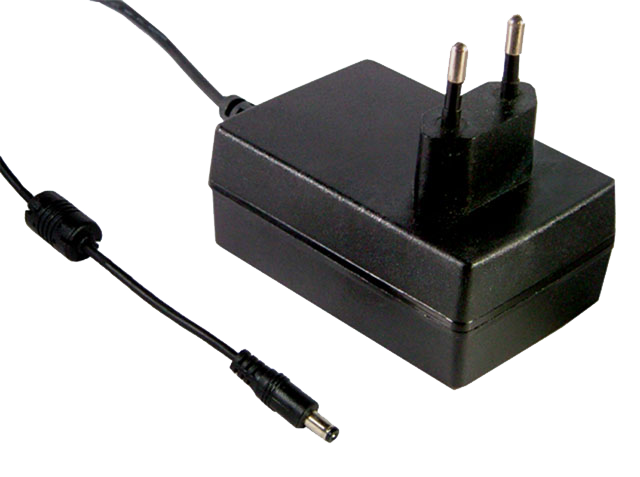

Technical Information & Details for MEAN WELL GSM18E09-P1J Power Supply Output Power: 18 W Output Voltage: 9 V DC Output Current: 0 – 2 A Input Voltage Range: 80 – 264 V AC / 113 – 370 V DC, 47 – 63 Hz Efficiency: 84% Ripple & Noise: ≤ 80 mVp-p Inrush Current: max. 30 A @115 VAC / 55 A @230 VAC No-Load Power Consumption: < 0.1 W Operating Temperature: −25 °C to +60 °C Cooling: Free air convection Protections: Short circuit, Overload, Over voltage Isolation Voltage: 4000 V AC (Input to Output) Dimensions (L x W x H): 79 mm x 54 mm x 33 mm Weight: approx. 200 g Safety & EMC Standards: EN60601-1, EN60601-1-11, TUV, CB, EAC, CE LED Indicator: Power On Indicator Warranty: 3 years Product Details for MEAN WELL GSM18E09-P1J Tailored specifically for critical medical electronics, the MEAN WELL GSM18E09-P1J wall-mounted adapter incorporates double patient protection isolation compliant with 2 x MOPP alongside an ultralow leakage current of < 50 µA. Providing a reliable 18 W continuous output at 9 V DC, this Class II plug-in power unit features a double-insulated 94V-0 flame-retardant enclosure. Full compliance with EN60601-1-11 home healthcare standards and Energy Efficiency Level VI efficiency criteria ensures ultra-low standby consumption below 0.1 W. Fitted with a standard 2-pole Euro plug and a tuning-fork P1J DC connector (2.1 x 5.5 x 11 mm), it delivers safe, continuous operation for nebulizers, patient monitoring devices, and portable health equipment.
