• Output Power: 31.2 W (34.5 W Peak for 10s)
• Output Voltage: 24 V DC
• Output Current: 1.3 A
• Input Voltage Range: 80 – 264 V AC / 113 – 370 V DC, 47 – 63 Hz
• Efficiency: 90%
• Ripple & Noise: ≤ 120 mVp-p
• Inrush Current: max. 25 A @115 VAC / 45 A @230 VAC
• No-load Power Consumption: < 0.075 W
• Operating Temperature: −40 °C to +85 °C
• Cooling: Free air convection
• Protection Functions: Short circuit, Overload, Over voltage
• Isolation Voltage: 4000 V AC (4KVAC) I/P to O/P
• Medical Safety Class: 2xMOPP level, suitable for BF applications
• Dimensions (L x W x H): 91 mm x 39.5 mm x 28.5 mm
• Weight: approx. 120 g
• Connection Type: Screw Terminal Style
• Vibration Resistance: Up to 5G
• Manufacturer Warranty: 3 Years

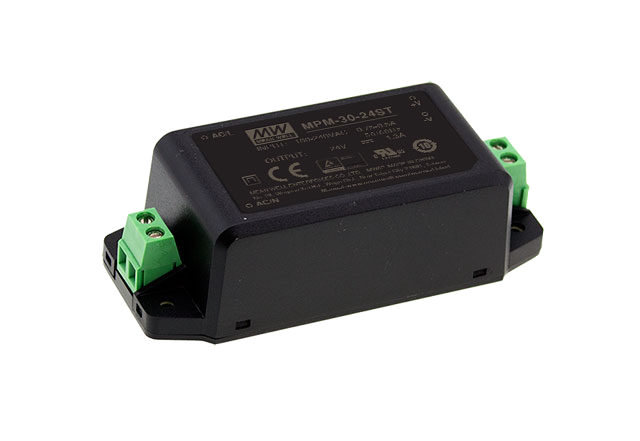

Product Information for MEAN WELL MPM-30-24ST

The MEAN WELL MPM-30-24ST is a high-density 30W medical grade AC/DC module featuring an integrated screw terminal block for easy chassis mounting and secure wiring. Designed for critical healthcare infrastructure, it adheres to 2xMOPP isolation standards and maintains an ultra-low touch current (< 80µA), qualifying it for BF-rated (Body Floating) applications where direct patient contact is required. The "ST" model is specifically built for harsh mechanical conditions, offering enhanced anti-vibration performance up to 5G, ensuring reliability in mobile medical clinical workstations.

This eco-friendly power solution stands out with a low no-load power consumption of < 0.075W and a high efficiency rating of 90%. The module provides a stable 24V output and includes a robust peak load capacity of 34.5W for 10 seconds, which is essential for managing inductive or capacitive startup surges in diagnostic equipment. With Class II double insulation and a broad operating range from -40 to +85 °C, the MPM-30-24ST delivers a versatile and maintenance-free power source for medical computer monitors, clinical instruments, and portable medical workstations.
