• Output Power: 5 W
• Output Voltage: 12 V DC
• Output Current: 0.42 A
• Input Voltage Range: 80 – 264 V AC / 113 – 370 V DC, 47 – 440 Hz
• Efficiency: 80%
• Ripple & Noise: ≤ 100 mVp-p
• Inrush Current: max. 25 A @115 VAC / 45 A @230 VAC
• No-load Power Consumption: < 0.075 W
• Operating Temperature: −40 °C to +85 °C
• Cooling: Free air convection
• Protection Functions: Short circuit, Overload, Over voltage, Over temperature
• Isolation Voltage: 4000 V AC (Input to Output)
• Leakage Current: < 80 µA (Touch current)
• Dimensions (L x W x H): 45.7 mm x 25.4 mm x 21.5 mm
• Weight: approx. 35 g
• Safety & EMC Certificates: ANSI/AAMI ES60601-1, IEC/EN 60601-1, 2xMOPP, CE, EAC
• MTBF: > 9337.3K hrs
• Manufacturer Warranty: 3 Years

Information for MEAN WELL MPM-05-12

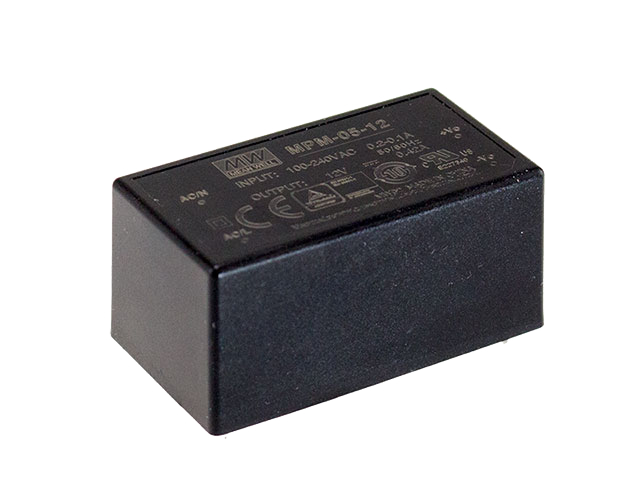

The MEAN WELL MPM-05-12 is a high-density, 5W encapsulated type AC/DC power supply module engineered specifically for the rigorous safety standards of the medical industry. Housed in a miniature 1.8" x 1" footprint, it is an ideal solution for compact PCB layouts in modern diagnostic equipment. Its compliance with 2xMOPP (Means of Patient Protection) and an ultra-low leakage current of less than 80 µA ensures safe operation in BF-type (patient contact) medical devices.

Engineered for long-term reliability, the MPM-05-12 utilizes internal potting to facilitate superior heat dissipation and provide 5G anti-vibration durability, which is essential for mobile clinical workstations. The unit operates as a Class II isolation device, meaning no functional ground is required, simplifying integration into various clinical environments. With no-load power consumption below 0.075W and a broad operating temperature range of -40 °C to +85 °C, this module delivers high "green" efficiency and stable 12V performance for sensitive medical electronics.
