• Output Power: 300 W (with 20.5CFM fan) / 200 W (convection)
• Output Voltage: 15 V DC (adjustable 14.25 – 15.75 V)
• Output Current: 20 A (with fan) / 13.33 A (convection)
• Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz
• Efficiency: up to 90 %
• Ripple & Noise: ≤ 120 mVp-p
• Inrush Current: max. 35 A @115 VAC / 70 A @230 VAC
• No Load Power Consumption: < 0.5 W (via PS-ON control)
• Operating Temperature: −30 °C to +70 °C
• Cooling: Open frame PCB type (requires 20.5CFM external fan for 300W)
• Protections: Short circuit, Overload, Over voltage, Over temperature
• Medical Safety Level: 2 x MOPP, BF rated for patient contact
• Isolation Voltage: 4000 V AC between primary and secondary
• Dimensions (L x W x H): 127 mm x 76.2 mm x 35 mm (5" x 3")
• Weight: approx. 390 g
• Safety & EMC Certificates: ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1, CE, EAC
• Auxiliary Functions: 5Vsb standby, 12V fan supply, Remote Sense, P.G. / P.F. signal
• Manufacturer Warranty: 3 Years

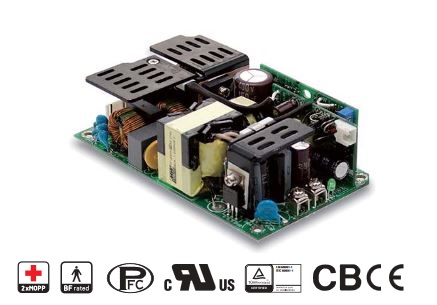

Information about the MEAN WELL RPS-300-15

The MEAN WELL RPS-300-15 is a high-performance medical-grade open-frame power supply designed for modern healthcare applications that demand high power density in a compact 5" x 3" footprint. This 15V unit is fully compliant with 2 x MOPP (Means of Patient Protection) standards and carries a BF (Body Floating) rating, making it safe for equipment with direct patient contact. Its "green" power architecture is highlighted by an extremely low leakage current of less than 150 µA and a no-load power consumption of under 0.5W, providing a secure and energy-efficient solution for sensitive clinical environments like medical monitors and hemodialysis machines.

Technically, the RPS-300-15 delivers a stable 15V DC output with the capacity for a full 300W under forced air cooling or 200W through natural convection. Unique characteristics of this model include its integrated 12V fan supply and a dedicated 5V standby output, which significantly streamline the design of medical computer systems and pump machines. Furthermore, the Remote Sense capability ensures precise voltage regulation at the load, while the 3-year manufacturer warranty and a typical lifetime of over 40,000 hours underscore its industrial-grade reliability for mission-critical medical and oral irrigation devices.
