• Product Type: Compact Size & Wide Output Range Battery Charger
• Output Connector Type: 4-pin XLR (UNICABLE 89M103-4P or equivalent)
• Default Charge Voltage (Boost / Float): 28.8V DC / 27.6V DC
• Adjustable Charge Voltage Range (via VR): 21 - 30.4V DC
• Adjustable Charge Current Range (via VR): 6 - 12A (50% - 100% rated current)
• Max. Output Current: 12A
• Max. Output Power: 345.6W
• Recommended Battery Capacity: 40 - 125 AH
• Input Voltage Range: 90 - 264V AC (47 - 63Hz) or 127 - 370V DC (built-in PFC)
• Efficiency: approx. 91%
• Control & Features: 2 or 3-stage charging selectable via DIP switch, Thermal-controlled Fan ON/OFF
• Protection Functions: Short circuit, Over voltage, Over temperature, Battery reverse polarity (internal fuse)
• Dimensions & Weight: 182.7 x 96 x 49 mm (L x W x H) / 1.3 kg
• Manufacturer Warranty: 3 Years

Information about the MEAN WELL NPB-360-24XLR

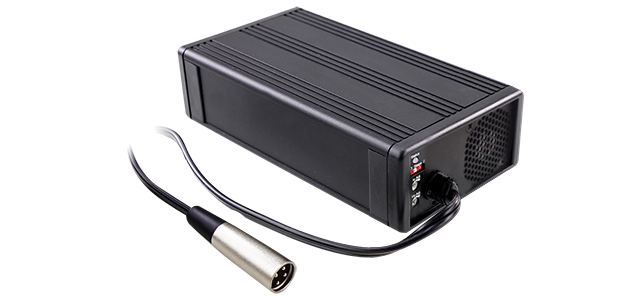

The MEAN WELL NPB-360-24XLR is a compact, highly efficient 360W battery charger designed for 24V charging applications. It is fully compatible with lead-acid (flooded, GEL, AGM) as well as lithium-ion (lithium iron, lithium manganese) battery chemistries. This specific variant comes pre-equipped with a 4-pin XLR output cable (approx. 100 cm length) for convenient plug-and-play connectivity.

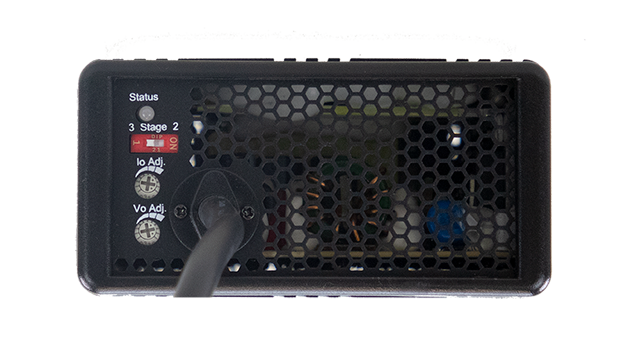

A key advantage of the NPB-360 series is its hardware adjustability. Charging voltage can be fine-tuned via front potentiometer (VR) from 21V to 30.4V, and charging current is adjustable from 6A to 12A. A front panel DIP switch allows effortless switching between a 2-stage charge curve (optimized for Lithium-ion batteries) and a 3-stage charge curve (optimized for Lead-acid batteries). Additional features include smart fan control based on internal temperature, a dual-color LED status indicator, low no-load power consumption (<0.15W with AC switch off), and dual safety certifications (UL/EN62368-1 and EN60335-1/-2-29), making it an excellent choice for electric scooters, specialty vehicles, surveillance equipment, and portable power tools.
