• Output Power: 345.6 W
• Output Voltage (Nominal): 48 V DC (Boost: 57.6 V, Float: 55.2 V)
• Output Current: 6 A
• Input Voltage Range: 90 – 264 V AC / 127 – 370 V DC, 47 – 63 Hz
• Efficiency: 94%
• Power Factor: PF > 0.98 / 115 VAC, PF > 0.95 / 230 VAC
• Inrush Current: Cold start 80 A @ 230 VAC
• Recommended Battery Capacity: 25 – 65 Ah
• Operating Temperature: −30 °C to +70 °C
• Cooling: Fanless, free air convection
• Protections: Short circuit, Over voltage, Over temperature, Battery under/over voltage, Reverse polarity
• Vibration Resistance: 10 – 500 Hz, 2G 10min./1 cycle, 60min. each along X, Y, Z
• Isolation Voltage: 3000 V AC between Input and Output (I/P-O/P)
• Dimensions (L x W x H): 192 mm x 178 mm x 45.5 mm
• Weight: 1.5 kg
• Safety & EMC Certificates: CB, CE, UL62368-1, IEC62368-1, EAC TP TC 004, BSMI
• Status Indicator: 2-color LED (Orange: Charging, Green: Float)
• Manufacturer Warranty: 3 years

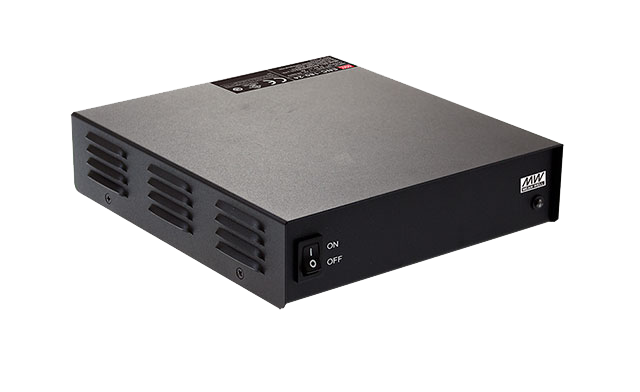

Information about MEAN WELL ENC-360-48

Tailored for high-efficiency 48V power architecture, the MEAN WELL ENC-360-48 combines intelligent 3-stage charging curves with an impressive peak efficiency of 94%. Eliminating internal fans entirely to prevent dust ingress and mechanical failures, this charger operates reliably across a wide working temperature range of −30 °C to +70 °C. The smart MCU circuit supports customizable charging profiles via DIP switches, paired with an external NTC probe that manages automatic temperature compensation to safeguard battery longevity. Engineered to withstand mechanical stress with certified vibration resistance up to 2G, the unit fully meets industrial safety benchmarks with its UL62368-1 certification. Supported by MEAN WELL’s solid 3-year warranty, it stands out as an exceptionally dependable solution for remote telecom stations, emergency power supplies, and industrial surveillance systems.
