• Output Power: 15 kW
• Output Voltage: 200 – 750 V DC (adjustable)
• Output Current: 25 A (continuous)
• Input Voltage Range: 156 – 502 V AC (3-phase, 45 – 65 Hz)
• Efficiency: ≥ 95%
• Ripple & Noise: ≤ ±0.5% Vout
• Inrush Current: < 45 A
• Power Factor: Active PFC (Power Factor ≥ 0.99)
• Operating Temperature: −40 °C to +60 °C (derating above +50 °C)
• Cooling: Regulated forced air cooling (front-to-back, ≤ 55 dBA)
• Protections: Input under/over voltage, output overcurrent/overvoltage, short circuit, over temperature
• EMC Immunity: IEC 61000-4-5 Level 4 (Surge ±4kV)
• Isolation Voltage: 3535 V DC (Input to Output)
• Dimensions (H x W x D): 276 mm x 84 mm x 427.7 mm
• Weight: approx. 11 kg
• Safety & EMC Standards: EN 61851-1, IEC 61000-3-2 Class A, RoHS 2002/95/EC
• LED Display: Status LEDs & 3-digit 7-segment display
• Interface & Features: CAN bus control, hot-swap capability, parallelable

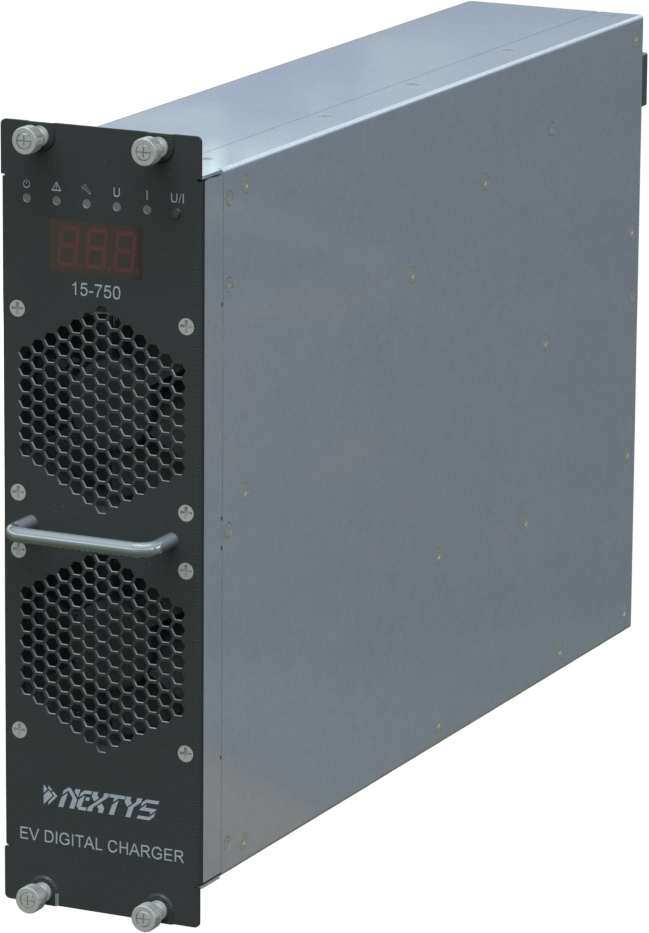

Information about the Nextys EVCT 15-750 15kW

Delivering 15kW of continuous DC power from a 3-phase wide input grid, the Nextys EVCT 15-750 15kW is engineered specifically for fast-charging EV hardware and large-scale battery banks. Equipment integrators benefit from native CAN bus communication, which allows automated remote management of voltage setpoints across the wide 200–750 V DC window. Designed to handle demanding outdoor cabinet installations, it operates reliably across an aggressive operating temperature range of −40 °C to +60 °C. The system also simplifies field maintenance through seamless Hot-Swap capability and parallel scalability. Reinforced by a robust 3535 V DC dielectric isolation strength, this rack-mountable unit ensures long-term operational safety in high-power industrial environments.
