• Output Power: 60 W
• Output Voltage: 24 V DC
• Output Current: 2.5 A
• Input Voltage Range: 100 – 305 V AC / 155 – 400 V DC, 47 – 63 Hz
• Efficiency: 87% (Typical)
• Setup & Rise Time: 800ms, 180ms / 230VAC
• Inrush Current: 15 A @ 230 VAC (Cold Start)
• Standby Power Consumption: < 0.5 W (for B/DA2 types)
• Operating Temperature: -25 °C to +90 °C (T-case)
• Cooling: Fanless free air convection
• Protection Functions: Short circuit, Overload, Over voltage, Over temperature
• Protection Rating: Fully encapsulated IP67, Class II power unit
• Isolation Voltage: 3750 V AC (Input to Output)
• Dimensions (L x W x H): 141.5 mm x 49 mm x 32 mm
• Weight: Approx. 490 g
• Safety & EMC Certificates: UL8750, ENEC, CB, CE, EAC, UKCA
• Special Features: Flicker-free design (IEEE 1789 compliant)
• Manufacturer Warranty: 5 Years

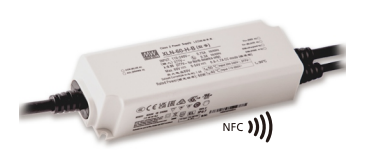

Information regarding the MEAN WELL XLN-60-24

The MEAN WELL XLN-60-24 is a premier 60W LED driver engineered to provide a constant 24V DC output, making it a perfect match for high-quality LED strips and commercial lighting fixtures. This unit stands out with its independent type design and a fully encapsulated IP67-rated plastic housing, which ensures maximum durability against environmental factors. Its fanless architecture relies on natural air convection for cooling, allowing for silent operation while maintaining a wide operating temperature range of up to 90°C at the case, ensuring stability even in confined installation spaces.

A core highlight of the XLN-60 series is its advanced flicker-free technology, which complies with the latest CE ErP directives to prevent visual fatigue and ensure high light quality. The device features a built-in active PFC function and maintains an impressively low standby power consumption of less than 0.5W, facilitating compliance with modern energy-saving regulations. With Class II insulation (no FG required) and comprehensive protection circuits—including auto-recovery for short circuits and overloads—this driver offers a long service life of 50,000 hours. It is an ideal, reliable solution for professional integrators working on commercial, decorative, or emergency lighting systems.
